Official DistributorSKU
MPN
BL2 BPC 9101
Weight
0.003 kg
Series BL2-BPC

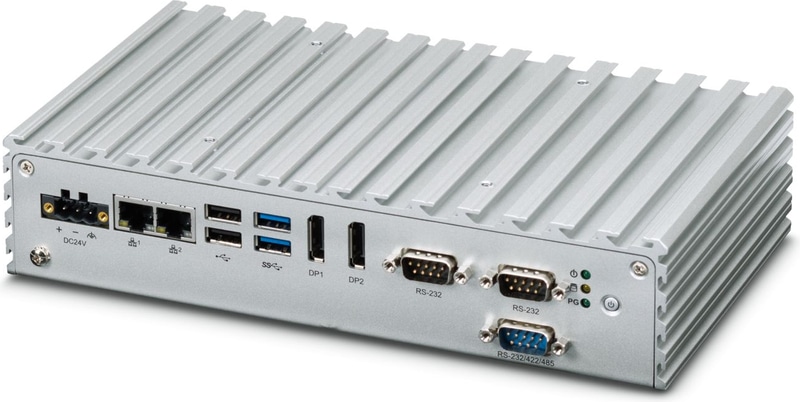

BL2 BPC 9101 - Box PC
IP20-rated, fanless industrial box PC (BPC) with a powerful Intel® Core™ i7-6600U processor with 8 GB of RAM and an open M.2 slot for mass storage
Technical Specifications
Computer data
| Processor | Intel® Core™ i7-6600U |
| Operating system | without operating system |
| RAM | 8 GB DDR3 |
| Data storage system | M.2 SSD |
| Cooling | passive |
Display
| Display type | without display |
Electrical properties
| Service life of battery | 5 years (typical) |
Supply
| Power Supply Unit | 24 V DC ±20 % |
Real-time clock
| Realtime Clock | Yes (battery-backed) |
Interfaces
| Interfaces | 1x COM (RS-232/422/485) |
| Interfaces | 2x COM (RS-232) |
| Interfaces | 2x USB 2.0 |
| Interfaces | 2x USB 3.0 |
| Monitor Output | 2x DisplayPort |
| Network | 2x Ethernet (10/100/1000 Mbps), RJ45 |
| LAN chipset | Intel® I210-AT |
External dimensions
| Width / Height / Depth | 247 mm / 145 mm / 54 mm |
Installation dimensions
| Width / Height / Installation depth | 247 mm / 94 mm / |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | 0 °C ... 50 °C |
| Ambient temperature (storage/transport) | -20 °C ... 75 °C |
| Permissible humidity (operation) | 10 % ... 90 % (non-condensing) |
| Permissible humidity (storage/transport) | 10 % ... 90 % (non-condensing) |
| Shock | 20g, 11 ms in accordance with IEC 60068-2-27 |
| Vibration (Operation) | 2grms @ sine, 5~500 Hz, 1 h/axis (panel mounting; SSD operating) according to EN 60068-2-60.5grms @ sine, 5~500 Hz, 1 h/axis (panel mounting; HDD operating) according to EN 60068-2-6 |
Mounting
| Mounting Type | Wall mounting |
| Mounting Type | DIN rail mounting |
Why Proax for Phoenix Contact 1099311?
Proax is an authorized distributor of Phoenix Contact 1099311 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
