1084009
Official DistributorSKU
PHX1084009
MPN
ICC-CODING
Weight
0 kg

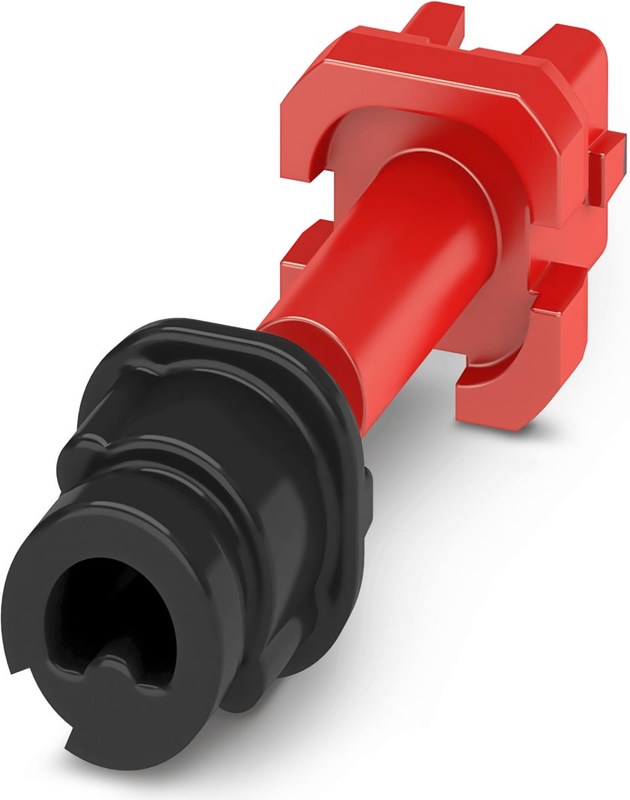

ICC-CODING - Coding element
Coding profile for ICC connectors of the ICS housing series
- Easy, tool-free mounting
- Plastic in accordance with UL94 V0: for more rigorous flammability requirements
Technical Specifications
Product properties
| Housing series | ICS |
Mounting
| Mounting Type | Latching |
Material specifications
| Color (Housing) | red (RAL 3001) |
| Color | black (RAL 9005) |
| Flammability rating according to UL 94 | V0 |
| Housing Material | Polyamide |
| Surface characteristics | untreated |
Why Proax for Phoenix Contact 1084009?
Proax is an authorized distributor of Phoenix Contact 1084009 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 8 |
