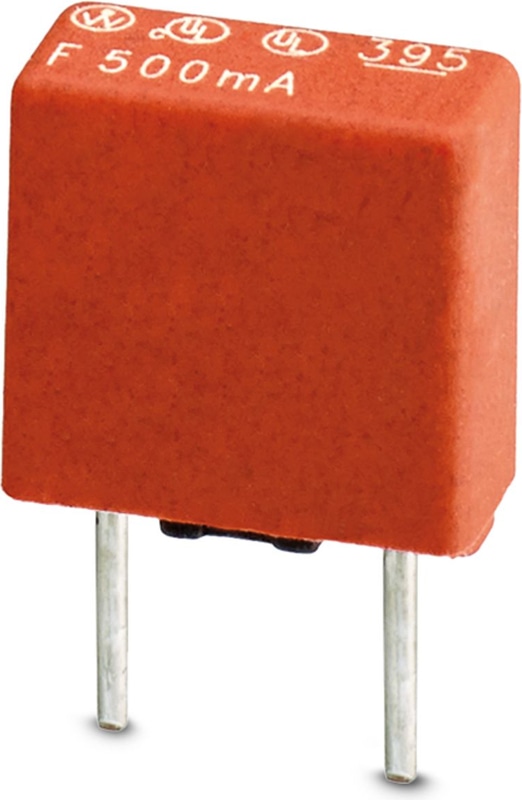

500 mA version shown
1053563
Official DistributorSKU
PHX1053563
MPN
FUSE/TE5/3.15A/T-10PCS
Weight
0.004 kg
Series FUSE-TE
FUSE/TE5/3.15A/T-10PCS - Fuse set
Fuse set, number: 10 Pcs., nominal current: 3.15 A, tripping characteristic: slow-blow (T)
Documents
Technical Specifications
Product properties
| Number of fuses in the set | 10 |
Electrical properties
| Tripping characteristic | slow-blow (T) |
| Rated voltage | 250 V |
| Maximum power dissipation for nominal condition | 1.2 W |
| Nominal current IN | 3.15 A |
| Fuse | TE5 |
Why Proax for Phoenix Contact 1053563?
Proax is an authorized distributor of Phoenix Contact 1053563 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
