1048209
Official DistributorSKU
PHX1048209
MPN
IOA LM-DI/R/RUSIO/EX
Weight
0.054 kg

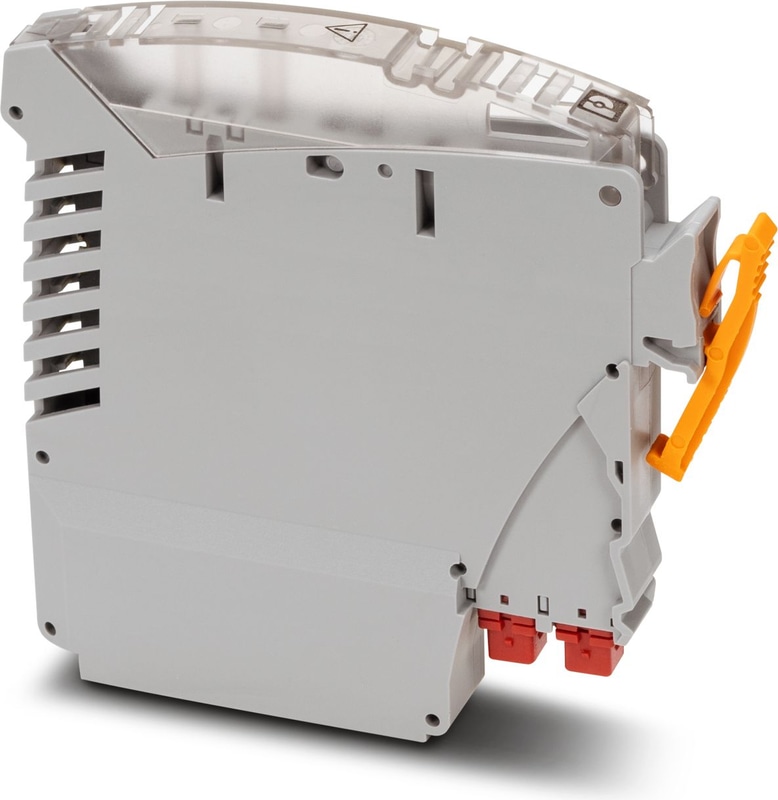

IOA LM-DI/R/RUSIO/EX - Monitoring block
Cable monitoring module for VIP I/O marshalling base elements. Enables cable fault monitoring when using standard switching contacts in safety applications. Both wire breaks and short circuits can be detected.
Technical Specifications
Product properties
| Product family | VIP I/O-Marshalling |
| Number of Positions | 1 |
Insulation characteristics
| Overvoltage category | II |
| Pollution degree | 2 |
Electrical properties
| Max. operating voltage Umax | 30 V |
| Max. permissible current | 6 mA (Signal) |
Safety data
| Input voltage Ui | 30 V |
| Input current Ii | 6 mA |
| Inductance Li | 0 mH |
| Capacitance Ci | 0 µF |
| Max. output voltage Uo | Ui |
| Max. output current Io | 4 mA |
| Max. output power Po | 120 mW |
Item dimensions
| Width | 10.3 mm |
| Height | 64.2 mm |
| Depth | 72.9 mm |
Material specifications
| Color | gray (RAL 7042) |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -40 °C ... 75 °C |
| Ambient temperature (storage/transport) | -40 °C ... 75 °C |
| Altitude | 2000 mm |
| Permissible humidity (operation) | 0 % ... 95 % (non-condensing) |
ATEX
| Identification | II 3G Ex ec IIC T4 Gc |
| Identification | II 3G Ex ic IIC T4 Gc |
| Certificate | CSANe 20ATEX3152X |
IECEx
| Identification | Ex ec IIC T4 Gc |
| Identification | Ex ic IIC T4 Gc |
| Certificate | IECEx SIR 21.0005X |
UKEX
| Identification | II 3G Ex ec IIC T4 Gc |
| Identification | II 3G Ex ic IIC T4 Gc |
| Certificate | PxCIF23UKEX1048208X |
CSA, USA/Canada
| Identification | Class I, Div. 2, Groups A, B, C, D |
| Identification | Class I, Zone 2, AEx ic IIC T4 Gc |
| Identification | ANIFW apparatus for connection to:Class I, II, III, Div. 2 Groups A, B, C, D, F, G |
| Identification | Ex ic IIC T4 Gc |
| Identification | Ex ec IIC T4 Gc |
| Certificate | CSA 21CA80047687X |
Standards and Regulations
| Standards/regulations | IEC 60664 |
| Standards/regulations | DIN EN 50178 |
Mounting
| Mounting Type | Plug-in mounting |
| Assembly instructions | Plugs into VIP/...BASE... |
| Mounting Position | any |
