Official DistributorSKU
MPN
BL2 PPC10 1201-4/128-W10
Weight
2.53 kg
This product is Not Cancellable/Not Returnable
Series BL2-PPC

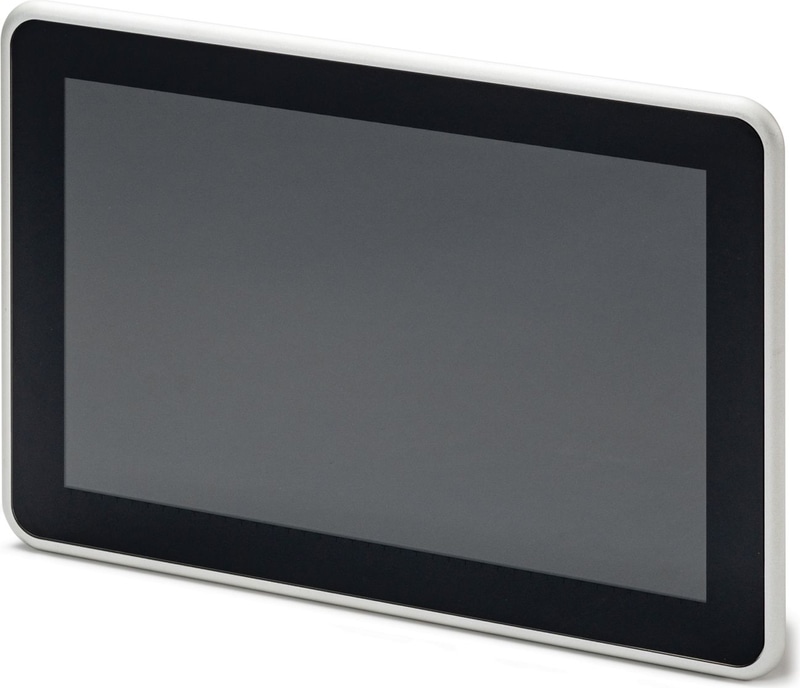

BL2 PPC10 1201-4/128-W10 - Panel PC
IP65 panel PC (PPC) with 10-inch screen, Intel® Celeron® N3350 processor, 4 GB of RAM, 128 GB mSATA SSD, and Windows 10 IoT Enterprise LTSC 2019 operating system.
Technical Specifications
Computer data
| Processor | Intel® Celeron® N3350 |
| Operating system | Windows® 10 IoT Enterprise LTSC 2019 (64-bit), Multi-language |
| RAM | 4 GB DDR3 SODIMM |
| Data storage system | 128 GB mSATA |
| Cooling | passive |
Display
| Display type | 25.7 cm / 10.1" TFT |
| Screen resolution | 1024 x 600 Pixel(s) (WVGA) |
| Touch technology | projective-capacitive (PCAP) |
| Display lighting type | LED |
| Brightness | 300 cd/m², typical (adjustable) |
| MTBF | > 25000 h |
| Color spectrum | 262000 colors |
| Reading angle bottom | 10-point touch |
System properties
| User software | without user software |
Electrical properties
| Service life of battery | 5 years (typical) |
Supply
| Power Supply Unit | 24 V DC ±20 % |
| Max. current consumption | 1.09 A |
Real-time clock
| Realtime Clock | Yes (battery-backed) |
Connection data
| Connection Method | Screw connection |
| Conductor cross section, rigid | 0.14 mm² ... 1.5 mm² |
| Conductor cross section, flexible | 0.14 mm² ... 1.5 mm² |
| Conductor cross section AWG | 28 ... 16 |
| Stripping length | 7 mm |
Interfaces
| Interfaces | 1x COM (RS-232) |
| Interfaces | 1x USB 2.0 |
| Interfaces | 2x USB 3.0 |
| Interfaces | 2x COM (RS-232/422/485) |
| Monitor Output | 1x HDMI |
| Network | 2x Ethernet (10/100/1000 Mbps), RJ45 |
| LAN chipset | Intel® I210-AT |
External dimensions
| Width / Height / Depth | 266 mm / 184 mm / 48 mm |
Installation dimensions
| Width / Height / Installation depth | 229 mm / 155 mm / (Panel cutout for 10" display) |
Ambient conditions
| Degree of Protection | IP65 (front), IP20 (back) |
| Ambient Temperature (Operation) | -5 °C ... 50 °C |
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
| Permissible humidity (operation) | 10 % ... 90 % (non-condensing) |
| Permissible humidity (storage/transport) | 10 % ... 90 % (non-condensing) |
| Shock | 20g, 11 ms in accordance with IEC 60068-2-27 |
| Vibration (Operation) | DIN EN 60068-2-6 |
Mounting
| Mounting Type | Front mounting |
| Mounting Type | VESA holder (not for industrial use) |
| Holder system | VESA MIS-D 75 |
| Holder system | VESA MIS-D 100 C |
