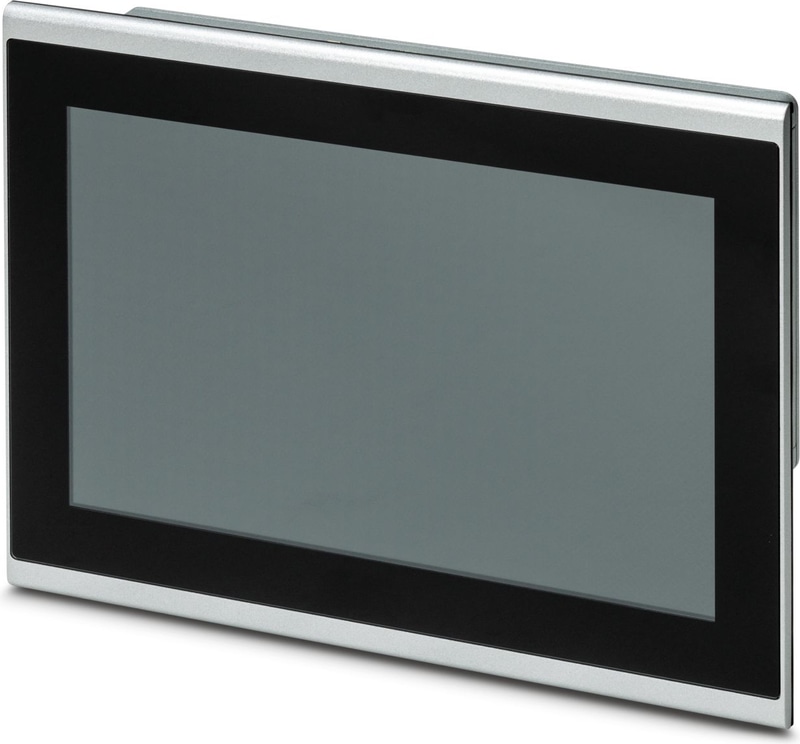

TP 6101-WXPS - Touch panel
IP66 Touch panel with 10.1-inch widescreen (16:9) XGA, PCAP display, software: Visu+ RT
- PCAP touch interface, ten-point multi touch control
- Fanless design
- Dual USB 2.0 ports
- Integrated Visu+ visualization software
- Ideal for use with PLCnext
- Configurable multifunction serial port
Technical Specifications
Computer data
| Processor | Arm® Cortex®-A9, 800 MHz |
| Operating system | Windows® Embedded Compact 7 |
| Data storage system | Flash eMMC, 8 GB |
| Slots | 1x microSD |
Display
| Display type | 25.9 cm / 10.2" TFT |
| Screen resolution | 1280 x 800 Pixel(s) (WXGA) |
| Touch technology | projective-capacitive (PCAP) |
| Display lighting type | LED |
| Brightness | 500 cd/m² typical (adjustable) |
| MTBF | 50000 h |
| Color spectrum | 16.7 million colors |
| Reading angle left | 85.00 ° |
| Reading angle right | 85.00 ° |
| Reading angle top | 85.00 ° |
| Reading angle bottom | 85.00 ° |
Interfaces
| Interfaces | 2x USB Host 2.0 |
| Interfaces | 1x COM (RS-232/422/485) |
| Optional interfaces | Without optional interface |
| Network | 1x Ethernet (10/100/1000 Mbps), RJ45 |
| Bus system | without |
System properties
| User software | Visu+ |
System requirements
| Runtime system | Visu+ Runtime |
Supply
| Supply Voltage | 24 V DC |
| Supply Voltage Range | 18 V ... 32 V |
| Power Supply Unit | 24 V DC ±20 % |
| Max. current consumption | 1.81 A (max. system configuration at 24 V DC) |
| Typical current consumption | 0.79 A (max. system configuration at 24 V DC) |
Real-time clock
| Realtime Clock | Integrated (battery backup) |
Mounting
| Mounting Type | Front mounting |
Material specifications
| Material front plate | Aluminum (natural anodized) |
| Housing Material | Aluminum cast alloy, powder-coated |
Connection data
| Connection Method | Screw connection |
| Conductor cross section, rigid | 0.2 mm² ... 2.5 mm² |
| Conductor cross section, flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
| Conductor cross section, flexible, with ferrule, with plastic sleeve | 0.25 mm² ... 2.5 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve | 0.25 mm² ... 2.5 mm² |
| Stripping length | 7 mm |
Ambient conditions
| Degree of Protection | IP66 (front), IP20 (back) |
| Ambient Temperature (Operation) | -20 °C ... 50 °C |
| Ambient temperature (storage/transport) | -25 °C ... 85 °C |
| Permissible humidity (operation) | 5 % ... 85 % (non-condensing) |
| Permissible humidity (storage/transport) | 5 % ... 85 % (non-condensing) |
| Vibration (Operation) | 1g |
External dimensions
| Width / Height / Depth | 263 mm / 200 mm / 51 mm (Dimensions of the front plate) |
Installation dimensions
| Width / Height / Installation depth | 252 mm / 189 mm / (Installation cutout) |
