Phoenix Contact PT 1,5/S-QUATTRO YE
AllConnectorsTerminal blocksPush-in connection
Phoenix ContactOfficial Distributor

By Phoenix Contact

SKU
MPN
1315243
Weight
0.005 kg
This product is Not Cancellable/Not Returnable
Series PT

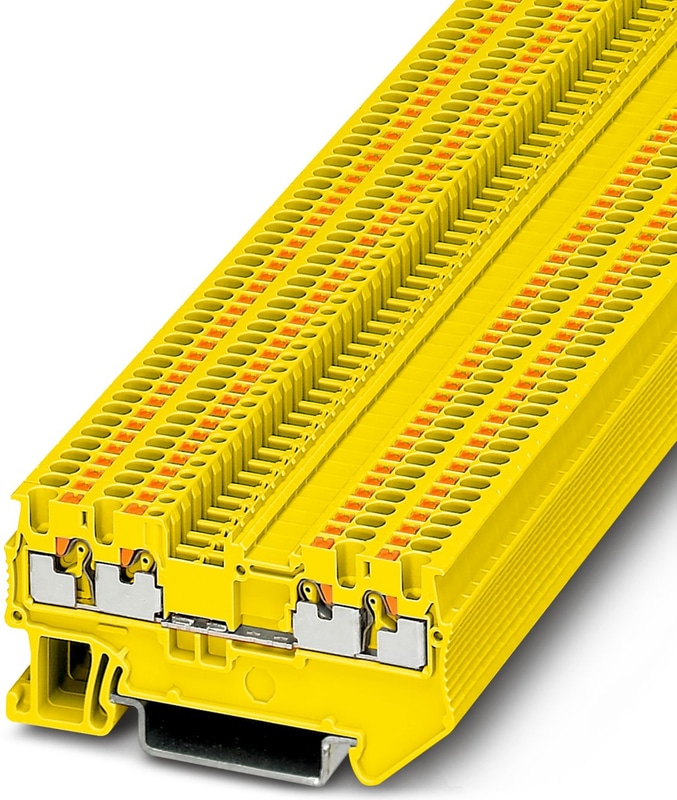

Feed-through terminal block - PT 1,5/S-QUATTRO YE

Feed-through terminal block, nom. voltage: 500 V, nominal current: 17.5 A, connection method: Push-in connection, 1 level, cross section: 0.14 mm² - 1.5 mm², mounting type: NS 35/7,5, NS 35/15, color: yellow

  • In addition to the testing facility in the double function shaft, all terminal blocks provide an additional test connection
  • The compact design and front connection enable wiring in a confined space
  • The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
  • Tested for railway applications
Technical Specifications

General

Number of rows1
Number of Connections4
Nominal cross section1.5 mm²
Coloryellow
Insulating materialPA
Flammability rating according to UL 94V0
Area of applicationRailway industry
Area of applicationMachine building
Area of applicationPlant engineering
Mounting TypeNS 35/7,5
Rated surge voltage6 kV
Degree of pollution3
Overvoltage categoryIII
Insulating material groupI
Maximum Load Current17.5 A (The maximum load current must not be exceeded by the total current of all connected conductors.)
Nominal current IN17.5 A
Nominal voltage UN500 V
Open side panelYes
Shock protection test specificationDIN EN 50274 (VDE 0660-514):2002-11
Back of the hand protectionguaranteed
Finger protectionguaranteed
Result of surge voltage testTest passed
Result of power-frequency withstand voltage testTest passed
Power frequency withstand voltage setpoint1.89 kV
Result of the test for mechanical stability of terminal points (5 x conductor connection)Test passed
Result of flexion and pull-out testTest passed
Bending test rotation speed10 rpm
Bending test turns135
Bending test conductor cross section/weight0.14 mm² / 0.2 kg
Bending test conductor cross section/weight1.5 mm² / 0.4 kg
Tensile test resultTest passed
Result of tight fit on supportTest passed
Tight fit on carrierNS 35
Setpoint1 N
Result of voltage-drop testTest passed
Result of temperature-rise testTest passed
Requirement temperature-rise testIncrease in temperature ≤ 45 K
NoteThe max. load current must not be exceeded by the total current of all connected conductors.
Short circuit stability resultTest passed
Conductor cross section short circuit testing1.5 mm²
Short-time current0.18 kA
Result of thermal testTest passed
Proof of thermal characteristics (needle flame) effective duration30 s
Result of aging testTest passed
Oscillation, broadband noise test resultTest passed
Test specification, oscillation, broadband noiseDIN EN 50155 (VDE 0115-200):2018-05
Test spectrumService life test category 2, bogie-mounted
Test frequencyf1 = 5 Hz to f2 = 250 Hz
ASD level6.12 (m/s²)²/Hz
Acceleration3.12g
Test duration per axis5 h
Test directionsX-, Y- and Z-axis
Shock test resultTest passed
Test specification, shock testDIN EN 50155 (VDE 0115-200):2018-05
Shock formHalf-sine
Acceleration30g
Shock duration18 ms
Number of shocks per direction3
Test directionsX-, Y- and Z-axis (pos. and neg.)
Relative insulation material temperature index (Elec., UL 746 B)130 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21))130 °C
Static insulating material application in cold-60 °C
Surface flammability NFPA 130 (ASTM E 162)passed
Specific optical density of smoke NFPA 130 (ASTM E 662)passed
Calorimetric heat release NFPA 130 (ASTM E 1354)28 MJ/kg
Smoke gas toxicity NFPA 130 (SMP 800C)passed
Fire protection for rail vehicles (DIN EN 45545-2) R22HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26HL 1 - HL 3

Dimensions

Width3.5 mm
End cover width2.2 mm
Height30.5 mm
Height NS 35/7,532 mm
Height NS 35/1539.5 mm

Connection data

Connection1 level
Connection MethodPush-in connection
Stripping length8 mm ... 10 mm
Connection in acc. with standardIEC 60947-7-1
Conductor cross section solid min.0.14 mm²
Conductor cross section solid max.1.5 mm²
Conductor cross section AWG min.26
Conductor cross section AWG max.14
Conductor cross section flexible min.0.14 mm²
Conductor cross section flexible max.1.5 mm²
Min. AWG conductor cross section, flexible26
Max. AWG conductor cross section, flexible14
Conductor cross section flexible, with ferrule without plastic sleeve min.0.14 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max.1.5 mm²
Conductor cross section flexible, with ferrule with plastic sleeve min.0.14 mm²
Conductor cross section flexible, with ferrule with plastic sleeve max.1 mm²
Connection cross sections directly pluggable0.25 mm² 1.5 mm²
Conductor cross section solid min.0.25 mm²
Conductor cross section solid max.1.5 mm²
Conductor cross section flexible, with ferrule without plastic sleeve min.0.34 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max.1.5 mm²
Conductor cross section flexible, with ferrule with plastic sleeve min.0.34 mm²
Conductor cross section flexible, with ferrule with plastic sleeve max.1 mm²
Internal cylindrical gageA1 / B1

Ambient conditions

Operating Temperature-60 °C ... 105 °C (max. short-term operating temperature RTI Elec.)
Ambient temperature (storage/transport)-25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)
Permissible humidity (storage/transport)30 % ... 70 %
Ambient temperature (assembly)-5 °C ... 70 °C
Ambient temperature (actuation)-5 °C ... 70 °C

Standards and Regulations

Connection in acc. with standardIEC 60947-7-1

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
China RoHSNo hazardous substances above threshold values
