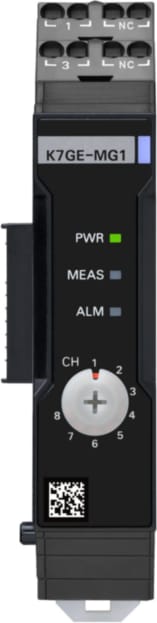

K7GE-MG Motor Insulation Resistance Monitor
Reliable, Safe and Accurate Automatic Insulation Resistance Measurements
The K7GE is a remote insulation resistance monitor designed to detect insulation breakdown of single-phase motors, three-phase motors, and servo motors in harsh environments. Insulation breakdown is common in motors operating in harsh environments and if they are not monitored regularly by performing manual insulation resistance checks it can lead to unexpected downtime on the equipment.
- DIN-rail mounted controller with LCD display
- RS-485 serial connection for remote monitoring
- Transistor alarm outputs
- Modular probe units for multiple motor insulation monitoring
- Free PC monitoring software
- 50 VDC measurement voltage
- 0.1- 99 M Ω measurement range
- Automatic insulation measurement
Technical Specifications
| Phase | 3-phase, 1-phase |
| Operation | Modular probe unit attaches to motor to measure insulation resistance |
| Range | 0.1 to 99.9 MΩ |
| Supply Voltage | 50 VDC |
| Case Material | PC |
| Mounting | DIN rail |
Why Proax for Omron K7GE-MG1?
Proax is an authorized distributor of Omron K7GE-MG1. We are Omron’s largest distributor in Canada. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | K7GEMG1 |
| Pack Size | 1 |
