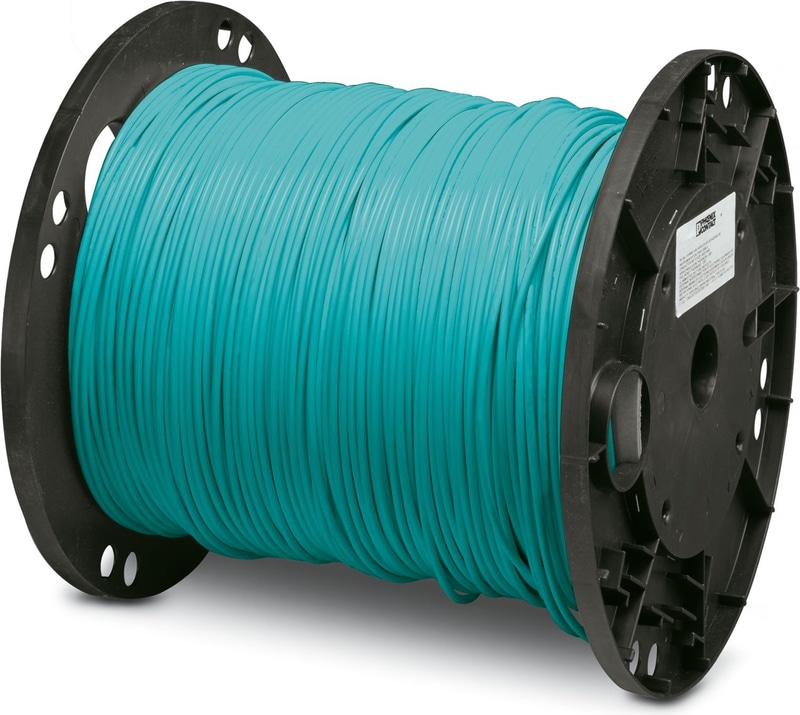

NBC-2X2X24-OE-OE-93F-100,0 SH - Cable reel
Cable reel, 4-position, TPE, highly flexible, Teal, shielded (Aluminum-lined polyester foil, tinned copper braided shield), cable length: 100 m
Technical Specifications
Product properties
| Number of Positions | 4 |
Cable/line
| Cable Length | 100 m |
Highly flexible Ethernet CAT5e [93F]
| UL AWM style | 2463 (80 °C / 600 V) |
| Number of Positions | 4 |
| Shielded | yes |
| Cable Type | Highly flexible Ethernet CAT5e [93F] |
| Conductor structure | 2x2xAWG24/7, SF/UTP |
| Conductor structure signal line | 7x 0.20 mm (7x32) |
| AWG Signal Line | 24 |
| Conductor Cross Section | 2x 2x 0.2 mm² |
| Wire diameter incl. insulation | 1.2 mm |
| External Cable Diameter | 6.70 mm ±0.25 mm |
| Outer sheath, material | TPE |
| External sheath, color | Teal |
| Conductor material | Tin-plated Cu litz wires |
| Material wire insulation | PE |
| Single wire, color | white/orange-orange, white/green-green |
| Twisted pairs | 2 cores to the pair |
| Overall twist | 2 pairs to the core |
| Optical shield covering | 75 % |
| Wave impedance | 100 Ω ±15 Ω (at 100 MHz) |
| Cable impedance | 100 Ω ±15 Ω (at 1 ... 100 MHz) |
| Nominal voltage, cable | 600 V |
| Test voltage | 2000 V |
| Max. bending cycles | 1000000 |
| Max. bending cycles | 20000000 (126 cycles/min. @ 20°C) |
| Torsion force | 360 °/m (1 lb. load) |
| Torsion cycles | 3000000 |
| Torsional frequency | 71 (cycles/min) |
| Ambient Temperature (Operation) | 20 °C |
| Near end crosstalk attenuation (NEXT) | 50 dB (with 100 MHz (IEC 62153-4-9)) |
| Return attenuation (RL) | 20 dB (at 10 МHz (+6LOG)) |
| Return attenuation (RL) | 26 dB (at 20 МHz) |
| Return attenuation (RL) | 26 dB (at 100 MHz (-5LOG)) |
| Flame resistance | VW-1 |
| Other resistance | Resistant to welding splashes (Abrasion and oil resistance) |
| Other resistance | UV resistant (CMX outdoor) |
| Ambient Temperature (Operation) | -40 °C ... 80 °C (Cable, flexible installation) |
