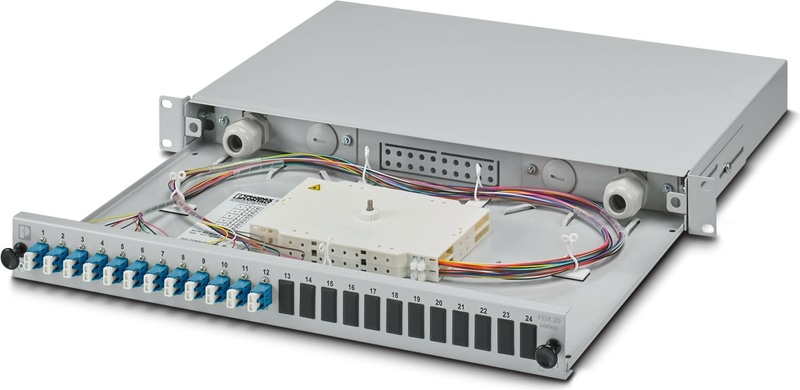

FOC-FDX20-FR19-LCD12-OSP-PT9 - Splice box
Splice box, design: 19" rack patch module, degree of protection: IP20, material: Metal, connection method: Splicing, housing size: 1, color: gray
- Intuitive front-panel operation and clear control cabinet layout thanks to uniform design
- Flexible DIN rail mounting possible in six positioning directions
- Suitable for industrial applications
- Reduced installation time with plug-and-play
- Pin assignment straight in line in a link
- Continuously reliable data connection, thanks to extensively tested components
- Snap-on mounting on standard DIN rails NS 35/7.5 or NS 35/15
- Transmission rate up to 1000 Mbps
Technical Specifications
Product properties
| Series | FDX 20 series |
| Type | 19" rack patch module |
| Connection profile | LC-Duplex |
| No. of cable outlets | 4 |
| No. of conductors | 24 |
| Number of module slots | 12 |
| Number of slots | 24 |
| Type of the screw connection | 2x Pg16 |
| Protective cover | yes |
Electrical properties
| Attenuation | ≤ 0.3 dB |
| Transmission medium | FO |
Connection technology
| Connection Method | Splicing |
Dimensions
| Width | 480 mm |
| Height | 44.45 mm |
| Depth | 280 mm |
Mechanical characteristics
| Ferrule diameter | 1.25 mm |
Material specifications
| Color | gray |
| Flammability rating according to UL 94 | V0 |
| Ferrule material | Zirconia ceramics |
| Housing Material | Metal |
| Housing surface material | Powder-coated, gray |
Cable/line
| Cable Type | Fiberglass |
| Cable Type | Loose Tube |
| Cable structure | semi-loose compact wires (STB) |
| External Cable Diameter | 7 mm ... 12 mm |
| External Cable Diameter | 6 mm ... 12 mm |
| Individual wire diameter | 900 µm |
| Single wire, color | color coded |
| Whip length | 750 mm |
| Halogen-free | yes |
| Flame resistance | yes |
FO cable
| Number of fibers | 24 |
| Fiber | GOF |
| Fiber type | Single mode fiberglass, 9/125 µm |
| Attenuation | ≤ 0.3 dB (at 1310 nm / 1550 nm) |
| Return Loss | ≥ 50 dB (at 1310 nm / 1550 nm) |
| Transmission medium | FO |
Mechanical data
| Type of the screw connection | 2x Pg16 |
| Insertion/withdrawal cycles | ≥ 500 |
| Smallest bending radius | 30 mm |
Characteristics
| Attenuation | ≤ 0.3 dB |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -40 °C ... 85 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Ambient temperature (assembly) | 0 °C ... 50 °C |
| Resistance to UV radiation | yes |
Standards and Regulations
| Flame resistance | yes |
Mounting
| Mounting Type | 19" rack mounting |
Accessories
