1132710
Official DistributorSKU
PHX1132710
MPN
DCT T 2,4 QVGA S RTOUCH
Weight
0.031 kg

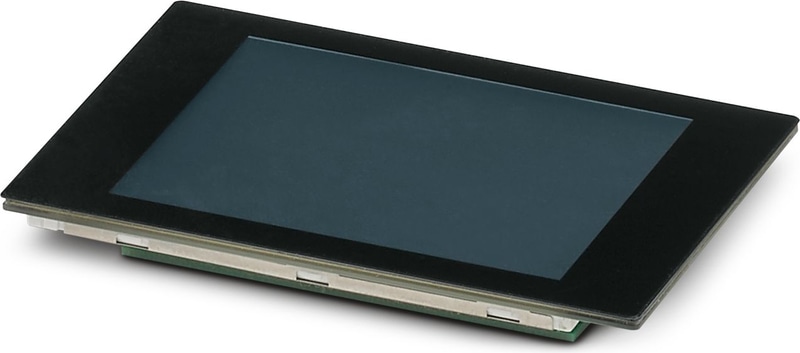

DCT T 2,4 QVGA S RTOUCH - Display
Resistive touch display, 2.4″, resolution: 320 x 240 pixels, interface: SPI, contrast ratio: 500:1, aspect ratio: 3:4, interface: “4-wire SPI half duplex, Glue and Play solution”, suitable for polyamide and polycarbonate
- Housing system for visualization and operation in the control cabinet
- Positioning of the display using the configurator
Technical Specifications
Notes
| Assembly instruction: | Refer to the data sheet for the range in the download area. |
Product properties
| Number of Positions | 14 |
| Pitch | 0.5 mm |
Display
| Display type | Color display TFT |
| Display type | resistive |
| Diagonals (cm) | 6.9 cm |
| Diagonals (inch) | 2.4 in. |
| Screen resolution | 320 x 240 Pixel(s) (QVGA) |
| Display formats | 3:4 |
| Display lighting type | LED, white |
| Contrast ratio | 500:1 |
| Controller | ST7789V |
Interfaces
| Interface | 4-wire SPI half duplex |
Dimensions
| Pitch | 0.5 mm |
| Dimensions | 47 mm x 74 mm x 7 mm |
| Dimensions | 38 mm x 50 mm (Viewing area) |
Material specifications
| Surface characteristics | untreated |
Vibration test
| Specification | IEC 60068-2-6:2007-12 |
| Result | Test passed |
| Frequency | 10 - 150 - 10 Hz |
| Sweep speed | 1 octave/min |
| Amplitude | 0.15 mm (10 Hz ... 58.1 Hz) |
| Acceleration | 20 m/s² |
| Test duration per axis | 2.5 h |
| Test directions | X-, Y- and Z-axis |
Shocks
| Specification | IEC 60068-2-27:2008-02 |
| Result | Test passed |
| Acceleration | 150 m/s² |
| Shock duration | 11 ms |
| Number of shocks per direction | 3 |
| Test directions | X-, Y- and Z-axis (pos. and neg.) |
Test for substances that would hinder coating with paint or varnish
| Specification | VDMA 24364:2018-05 |
| Result | Test passed |
Ambient conditions
| Ambient Temperature (Operation) | -20 °C ... 70 °C |
| Ambient temperature (storage/transport) | -30 °C ... 80 °C |
Why Proax for Phoenix Contact 1132710?
Proax is an authorized distributor of Phoenix Contact 1132710 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 10 |
