Name: 1088173
Brand: Phoenix Contact
SKU: PHX1088173
Price: 47.2400 CAD
Availability: InStock

Official Distributor

By Phoenix Contact

SKU

MPN

SAC-6P-DTMS-5P-M12FS P

Weight

0.014 kg

Series SAC-6P

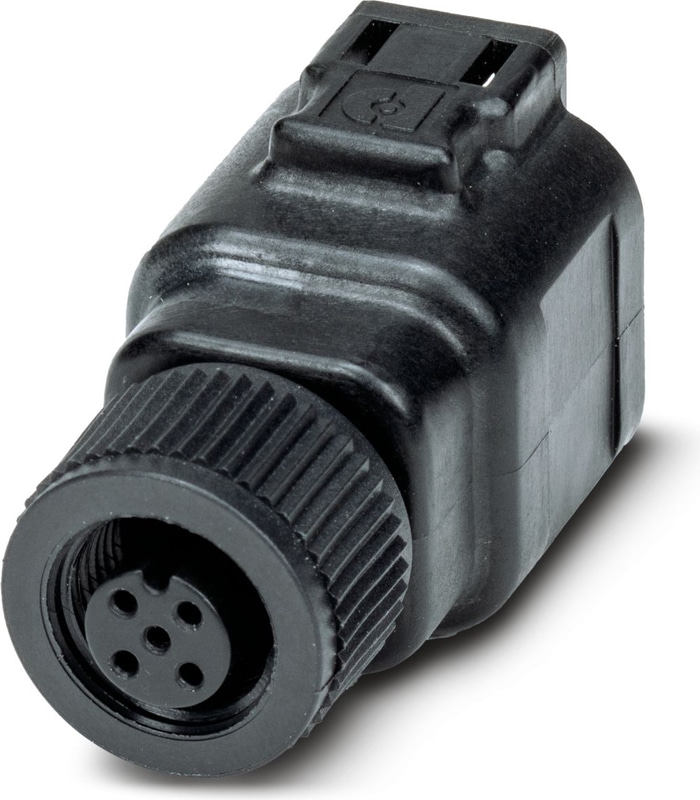

SAC-6P-DTMS-5P-M12FS P - Adapter

Adapter, 5-position, Plug straight DEUTSCH DT04-6P, on Socket straight M12, coding: A

Notes

Note on application

Sufficient strain relief at the connection point can prevent premature stress and wear. Utilize tie down accessories to eliminate bending and dynamic loads on the connector.

Product properties

Number of Positions	5
Coding	A

Insulation characteristics

Overvoltage category	II
Degree of pollution	3

Electrical properties

Nominal voltage U_N	48 V AC
Nominal voltage U_N	60 V DC
Nominal current I_N	4 A

Material specifications

Flammability rating according to UL 94	V0
Seal material	Viton
Material of grip body	GF nylon
Contact Material	CuSn
Contact surface material	Ni/Au M12, Ni/Sn DT
Contact carrier material	GF nylon
Material for screw connection	Plastic

Connection 1

Type	Plug straight DEUTSCH DT04-6P
Number of Positions	5

Connection 2

Type	Socket straight M12
Number of Positions	5
Coding type	A

Mechanical data

Insertion/withdrawal cycles

≥ 100

Ambient conditions

Degree of Protection	IP67
Degree of Protection	IP69K
Ambient Temperature (Operation)	-40 °C ... 105 °C

National Marine Electronics Association

Certificate

approved

Standards and Regulations

Standard designation	M12 connector
Standards/specifications	IEC 61076-2-101
Standards/specifications	SAE J2030
