Official DistributorSKU
MPN
ICC25-PSC2,5/4-5,0-AA-7035
Weight
0.007 kg
Series ICC25-PSC

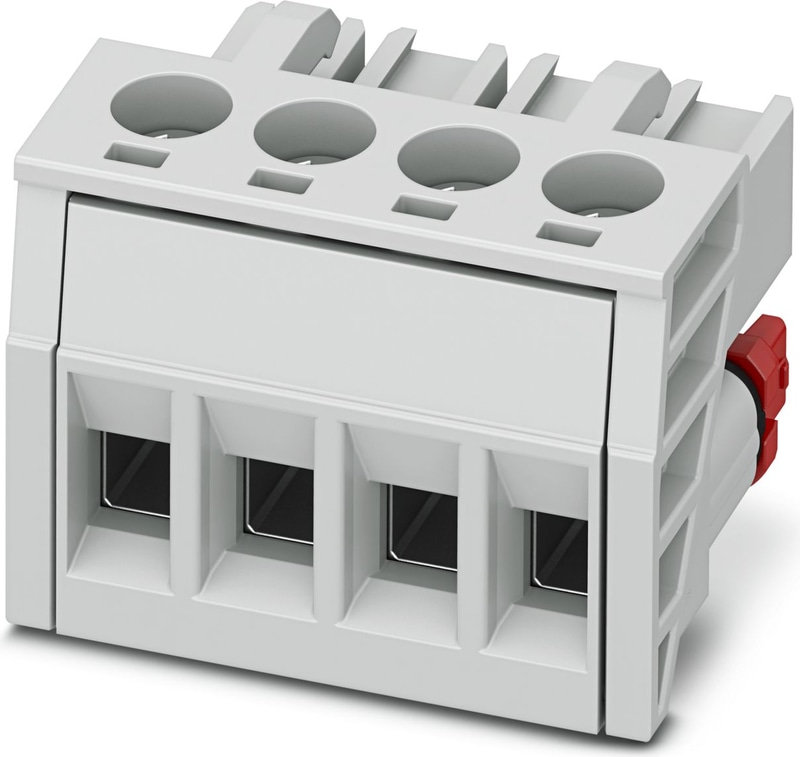

ICC25-PSC2,5/4-5,0-AA-7035 - PCB connectors
PCB connector, nominal cross section: 2.5 mm2, color: light grey, rated voltage (III/2): 320 V, contact connection type: Socket, number of potentials: 4, number of rows: 1, number of positions: 4, number of connections: 4, product range: ICC..-PSC2,5/..-5,0, pitch: 5 mm, connection method: Screw connection with tension sleeve, conductor/PCB connection direction: 0 °, locking clip: - Locking clip, locking: without, mounting: without, type of packaging: packed in cardboard
- Variable coding, for reliable protection against incorrect connection
- Quick and easily coded when initially connecting the connector and header
- Internationally recognized and proven screw connection
Technical Specifications
Product properties
| Product family | ICC..-PSC2,5/..-5,0 |
| Type | Standard |
| Number of Positions | 4 |
| Pitch | 5 mm |
| Number of Connections | 4 |
| Number of rows | 1 |
| Number of potentials | 4 |
Electrical properties
| Degree of pollution | 3 |
| Contact resistance | 1.25 mΩ |
Interlock
| Locking Type | without |
| Mounting flange | without |
Conductor connection
| Connection Method | Screw connection with tension sleeve |
| Conductor/PCB connection direction | 0 ° |
Material data - contact
| Note | WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201 |
| Contact Material | Cu alloy |
| Surface characteristics | Tin-plated |
| Metal surface terminal point (top layer) | Tin (Sn) |
Material data - housing
| Color (Housing) | light grey (7035) |
| Insulating material | PA |
| Insulating material group | I |
| CTI according to IEC 60112 | 600 |
| Flammability rating according to UL 94 | V0 |
| Glow wire flammability index GWFI according to EN 60695-2-12 | 850 |
| Glow wire ignition temperature GWIT according to EN 60695-2-13 | 775 |
| Temperature for the ball pressure test according to EN 60695-10-2 | 125 °C |
Dimensions
| Pitch | 5 mm |
| Width [w] | 22.5 mm |
| Height [h] | 15 mm |
| Length [l] | 18.77 mm |
Notes
| Coding | For details, refer to the product drawing in the “Downloads” tab. |
Safety note
| Safety note | WARNING: The connectors may not be plugged in or disconnected under load. Ignoring the warning or improper use may damage persons and/or property. |
| Safety note | • WARNING: Commission properly functioning products only. The products must be regularly inspected for damage. Decommission defective products immediately. Replace damaged products. Repairs are not possible. |
| Safety note | • WARNING: Only electrically qualified personnel may install and operate the product. They must observe the following safety notes. The qualified personnel must be familiar with the basics of electrical engineering. They must be able to recognize and prevent danger. The relevant symbol on the packaging indicates that only personnel familiar with electrical engineering are allowed to install and operate the product. |
| Safety note | • The item is intended to be an unencapsulated plug for installation in a housing. |
| Safety note | • Operate the connector only when it is fully plugged in. |
Test for conductor damage and slackening
| Specification | IEC 60999-1:1999-11 |
| Result | Test passed |
Repeated connection and disconnection
| Specification | IEC 60999-1:1999-11 |
| Result | Test passed |
Pull-out test
| Specification | IEC 60999-1:1999-11 |
| Conductor cross section/conductor type/tractive force setpoint/actual value | 0.2 mm² / solid / > 10 N |
| Conductor cross section/conductor type/tractive force setpoint/actual value | 0.2 mm² / flexible / > 10 N |
| Conductor cross section/conductor type/tractive force setpoint/actual value | 2.5 mm² / solid / > 50 N |
| Conductor cross section/conductor type/tractive force setpoint/actual value | 2.5 mm² / flexible / > 50 N |
Insertion and withdrawal forces
| Result | Test passed |
| No. of cycles | 25 |
| Insertion strength per pos. approx. | 9.2 N |
| Withdraw strength per pos. approx. | 8.7 N |
Resistance of inscriptions
| Specification | IEC 60068-2-70:1995-12 |
| Result | Test passed |
Polarization and coding
| Specification | IEC 60512-13-5:2006-02 |
| Result | Test passed |
Visual inspection
| Specification | IEC 60512-1-1:2002-02 |
| Result | Test passed |
Dimension check
| Specification | IEC 60512-1-2:2002-02 |
| Result | Test passed |
Vibration test
| Specification | IEC 60068-2-6:2007-12 |
| Frequency | 10 - 150 - 10 Hz |
| Sweep speed | 1 octave/min |
| Amplitude | 0.35 mm (10 Hz ... 60.1 Hz) |
| Acceleration | 5g (60.1 Hz ... 150 Hz) |
| Test duration per axis | 2.5 h |
Durability test
| Specification | IEC 60512-9-1:2010-03 |
| Impulse withstand voltage at sea level | 4.8 kV |
| Contact resistance R1 | 1.25 mΩ |
| Contact resistance R2 | 1.28 mΩ |
| Insertion/withdrawal cycles | 25 |
| Insulation resistance, neighboring positions | > 1 TΩ |
Climatic test
| Specification | ISO 6988:1985-02 |
| Corrosive stress | 0.2 dm3 SO2 on 300 dm3/40 °C/1 cycle |
| Thermal stress | 100 °C/168 h |
| Power-frequency withstand voltage | 2.21 kV |
Ambient conditions
| Ambient Temperature (Operation) | -40 °C ... 105 °C (dependent on the derating curve) |
| Ambient temperature (storage/transport) | -40 °C ... 55 °C |
| Relative humidity (storage/transport) | 30 % ... 70 % |
| Ambient temperature (assembly) | -5 °C ... 100 °C |
Thermal test | Test group C
| Specification | IEC 60512-5-1:2002-02 |
| Tested number of positions | 4 |
Insulation resistance
| Specification | IEC 60512-3-1:2002-02 |
| Insulation resistance, neighboring positions | > 1 TΩ |
Packaging specifications
| Type of packaging | packed in cardboard |
