1082405
Official DistributorSKU
PHX1082405
MPN
PTFIX 6X10/S-NS35 RD
Weight
0.031 kg
Series PTFIX

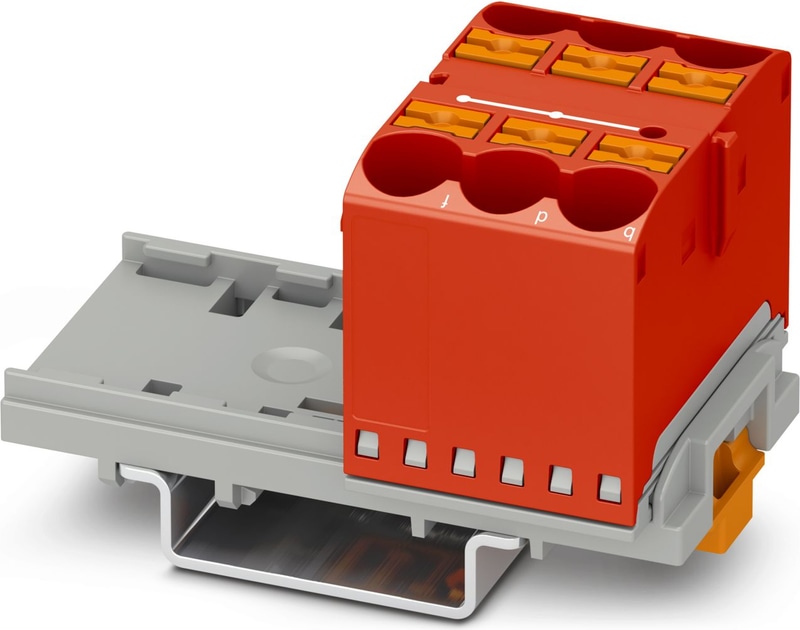

PTFIX 6X10/S-NS35 RD - Distribution block
Distribution block, Block with vertical alignment, nom. voltage: 800 V, nominal current: 57 A, number of connections: 6, connection method: Push-in connection, Rated cross section: 10 mm2, cross section: 0.5 mm2 - 16 mm2, mounting type: NS 35/7,5, NS 35/15, color: red
PTFIX
The Phoenix Contact PTFIX Series comprises ready-to-use distribution blocks featuring Push-in connection technology, designed to streamline potential distribution in control cabinets and various industrial applications. These blocks facilitate quick, tool-free wiring, enhancing installation efficiency and flexibility.
Key Features:
Ready-to-Connect Design: PTFIX blocks are pre-assembled and maintenance-free, allowing for immediate deployment without the need for manual bridging.
Push-in Connection Technology: This tool-free, direct plug-in method enables the easy insertion of solid and flexible conductors with ferrules, starting from 0.25 mm², reducing installation time.
Compact and Space-Saving: The compact design of PTFIX blocks saves space in control cabinets, making them ideal for applications with limited installation areas.
Versatile Mounting Options: Various adapters allow for DIN rail, direct, and adhesive mounting, providing flexibility to suit different installation requirements.
Color-Coded Variants: Available in up to 11 different colors, PTFIX blocks support intuitive and safe installation by enabling clear potential assignment.
Technical Specifications
General
| Note | For versions with 6 or 7 connections, it is enough to place one DIN rail adapter centrally per block and place flange elements after every other block. |
| Note | Depending on the application case and mechanical load, other arrangements of the mounting accessory can also be chosen. |
| Note | When using the DIN rail adapter PTFIX-NS35, an aligned block must not protrude by more than a half. |
Product properties
| Number of Connections | 6 |
| Number of rows | 1 |
| Potentials | 1 |
Insulation characteristics
| Overvoltage category | III |
| Degree of pollution | 3 |
Electrical properties
| Rated surge voltage | 8 kV |
| Maximum power dissipation for nominal condition | 1.82 W |
Connection data
| Number of connections per level | 6 |
| Nominal cross section | 10 mm² |
| Stripping length | 12 mm ... 14 mm |
| Connection in acc. with standard | IEC 60947-7-1 |
| Conductor cross section rigid | 0.5 mm² ... 16 mm² |
| Cross section AWG | 20 ... 6 (converted acc. to IEC) |
| Conductor cross section flexible | 0.5 mm² ... 10 mm² |
| Conductor cross section, flexible [AWG] | 20 ... 8 (converted acc. to IEC) |
| Conductor cross-section flexible (ferrule without plastic sleeve) | 0.5 mm² ... 10 mm² |
| Flexible conductor cross section (ferrule with plastic sleeve) | 0.5 mm² ... 6 mm² |
| Nominal Current | 57 A |
| Maximum Load Current | 76 A (with a 16 mm² conductor cross section, rigid) |
| Maximum total current | 90 A (The maximum load current of the individual terminal point must not be exceeded.) |
| Nominal Voltage | 800 V |
| Nominal cross section | 10 mm² |
Connection cross sections directly pluggable
| Conductor cross section rigid | 1 mm² ... 16 mm² |
| Conductor cross-section flexible (ferrule without plastic sleeve) | 1 mm² ... 10 mm² |
| Flexible conductor cross section (ferrule with plastic sleeve) | 1 mm² ... 6 mm² |
Dimensions
| Width | 37 mm |
| Height | 58.1 mm |
| Depth | 25.1 mm |
| Depth on NS 15 | 32.1 mm |
| Depth on NS 35/7,5 | 34.6 mm |
Material specifications
| Color | red |
| Flammability rating according to UL 94 | V0 |
| Insulating material group | I |
| Static insulating material application in cold | -60 °C |
| Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) | 125 °C |
| Relative insulation material temperature index (Elec., UL 746 B) | 125 °C |
Surge voltage test
| Result | Test passed |
| Result | Test passed |
Power-frequency withstand voltage
| Test voltage setpoint | 2 kV |
| Result | Test passed |
Mechanical data
| Open side panel | No |
Mechanical strength
| Result | Test passed |
Attachment on the carrier
| DIN rail/fixing support | NS 35 |
| Result | Test passed |
| Note | For versions with 6 or 7 connections, it is enough to place one DIN rail adapter centrally per block and place flange elements after every other block. |
| Note | When using the DIN rail adapter PTFIX-NS35, an aligned block must not protrude by more than a half. |
Test for conductor damage and slackening
| Rotation speed | 10 rpm |
| Revolutions | 135 |
| Conductor cross section/weight | 0.5 mm² / 0.3 kg |
| Conductor cross section/weight | 10 mm² / 2 kg |
| Conductor cross section/weight | 16 mm² / 2.9 kg |
| Result | Test passed |
Aging
| Temperature cycles | 192 |
| Result | Test passed |
Needle-flame test
| Time of exposure | 30 s |
| Result | Test passed |
Oscillation/broadband noise
| Specification | DIN EN 50155 (VDE 0115-200):2018-05 |
| Spectrum | Service life test category 2, bogie-mounted |
| Frequency | f1 = 5 Hz to f2 = 250 Hz |
| ASD level | 6.12 (m/s²)²/Hz |
| Acceleration | 3.12g |
| Test duration per axis | 5 h |
| Test directions | X-, Y- and Z-axis |
| Result | Test passed |
Shocks
| Pulse shape | Half-sine |
| Acceleration | 30g |
| Shock duration | 18 ms |
| Number of shocks per direction | 3 |
| Test directions | X-, Y- and Z-axis (pos. and neg.) |
| Result | Test passed |
Ambient conditions
| Ambient Temperature (Operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) |
| Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C) |
| Ambient temperature (assembly) | -5 °C ... 70 °C |
| Ambient temperature (actuation) | -5 °C ... 70 °C |
| Permissible humidity (operation) | 20 % ... 90 % |
| Permissible humidity (storage/transport) | 30 % ... 70 % |
Standards and Regulations
| Connection in acc. with standard | IEC 60947-7-1 |
Mounting
| Mounting Type | NS 35/7,5 |
| Mounting Type | NS 35/15 |
Accessories
Why Proax for Phoenix Contact 1082405?
Proax is an authorized distributor of Phoenix Contact 1082405 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 10 |
