Official DistributorSKU
MPN
REL-IR-BL/L- 24DC/2X21
Weight
0.03 kg
Series REL-IR-BL-L

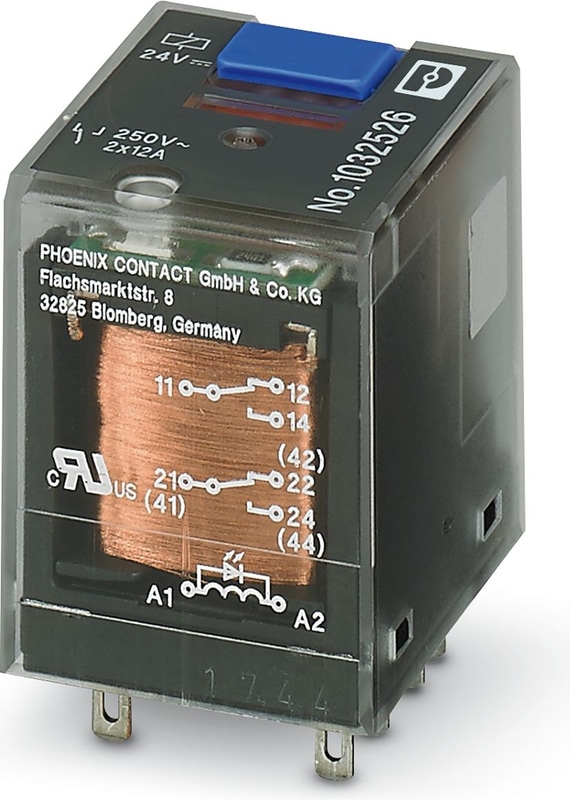

REL-IR-BL/L- 24DC/2X21 - Single relay
Plug-in industrial relay with power contacts, 2 changeover contacts, test button, status LED, mechanical switch position indicator, input voltage: 24 V DC
Technical Specifications
Notes
| Notes on operation | Do not connect adjacent channels to SELV/ PELV and voltages dangerous to the touch. |
| Notes on operation | The outputs are not suitable for switching different outer conductors. |
| Notes on operation | Do not use to separate SELV / PELV circuits from other circuits, because safe isolation is not guaranteed. |
Product properties
| Operating mode | 100% operating factor |
| Mechanical service life | 3x 10⁷ cycles |
Insulation characteristics
| Insulation | Basic insulation |
Insulation characteristics: Air clearances and creepage distances between coil and contact side
| Insulation | Basic insulation |
| Overvoltage category | III |
| Pollution degree | 2 |
Electrical properties
| Service life electrical | see diagram |
| Maximum power dissipation for nominal condition | 759 mW |
| Test voltage (Winding/contact) | 2.5 kVrms (50 Hz, 1 min., winding/contact) |
| Test voltage (Changeover contact/changeover contact) | 2.5 kVrms (50 Hz, 1 min., changeover contact/changeover contact) |
Air clearances and creepage distances between coil and contact side
| Rated Insulation Voltage | 250 V AC |
| Rated surge voltage | 5 kV |
Coil side
| Nominal input voltage UN | 24 V DC |
| Input voltage range | 19.2 V DC ... 40.8 V DC (20 °C) |
| Drive and function | monostable |
| Drive (polarity) | polarized |
| Typical input current at UN | 32 mA |
| Typical response time | 15 ms |
| Typical release time | 10 ms |
| Coil Voltage | 24 V DC |
| Status display | Yellow LED (bidirectional) |
Switching
| Contact switching type | 2 changeover contacts |
| Type of switch contact | Single contact |
| Contact Material | AgNi |
| Maximum Switching Voltage | 250 V AC/DC |
| Minimum Switching Voltage | 12 V (10 mA) |
| Limiting Continuous Current | 12 A |
| Maximum Inrush Current | 24 A (20 ms, N/O contacts) |
| Min. switching current | 10 mA (12 V) |
| Interrupting rating (ohmic load) max. | 288 W (24 V DC) |
| Interrupting rating (ohmic load) max. | 130 W (48 V DC) |
| Interrupting rating (ohmic load) max. | 90 W (60 V DC) |
| Interrupting rating (ohmic load) max. | 66 W (110 V DC) |
| Interrupting rating (ohmic load) max. | 88 W (220 V DC) |
| Interrupting rating (ohmic load) max. | 3000 VA (250 V AC) |
| Switching capacity min. | 120 mW |
Connection data
| Connection Method | Plug-in connection |
Dimensions
| Width | 22.5 mm |
| Height | 28 mm |
| Depth | 35.5 mm |
Ambient conditions
| Degree of Protection | RT II |
| Degree of protection (Installation location) | ≥ IP54 (Installation location) |
| Ambient Temperature (Operation) | -40 °C ... 70 °C |
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
| Altitude | ≤ 2000 m |
Air clearances and creepage distances between coil and contact side
| Standards/regulations | EN 61810-1 |
Mounting
| Mounting Type | Plug-in mounting |
| Assembly instructions | in rows with zero spacing |
| Mounting Position | any |
Why Proax for Phoenix Contact 1032526?
Proax is an authorized distributor of Phoenix Contact 1032526 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 10 |
