LS21P41B11-U01
Official DistributorBy ABB
SKU
ABBLS21P41B11U01
MPN
1SBV016041R3801
Weight
0.168 kg

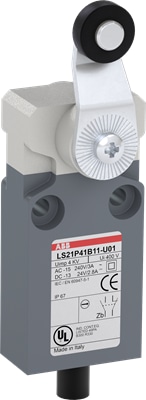

LS21P41B11-U01 is a 30 mm wide, compact Limit Switch made of fiber-glass reinforced UL-V0 material, with 2 mounting holes at the top, a prewired UL62 - PVC cable (1 m) on the bottom, plastic roller lever (Ø14 mm) actuator and 1 N.O + 1 N.C snap action (Zb type) contacts
Technical Specifications
Dimensions
| Product Net Width | 30 mm |
| Product Net Height | 92 mm |
| Product Net Depth / Length | 29 mm |
| Product Net Weight | 0.168 kg |
Technical
| Action Type of the Contact Element (acc. to IEC 60947-5-1) | Snap Action Simultaneous |
| Actuator Type | plastic roller lever (Ø14 mm) |
| B10d Value | Operations 20 Millions |
| Conventional Free-air Thermal Current (Ith) | acc. to IEC 60947-5-1, Θ = 40 °C 10 A |
| Degree of Protection | acc. to IEC 60529 IP67 |
| Housing Material | Plastic |
| Maximum Electrical Switching Frequency | (AC-15) 3600 cycles per hour |
| Maximum Electrical Switching Frequency | (DC-13) 3600 cycles per hour |
| Maximum Mounted Auxiliary Contacts | 1 NO, 1 NC |
| Mechanical Durability | 10 million |
| Mounting Type | 30 mm |
| Number and Type of Bottom Cable Glands | Bottom (Prewired UL/IEC cable) |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV |
| Rated Operational Current AC-15 (Ie) | (24 V) 10 A |
| Rated Operational Current AC-15 (Ie) | (130 V) 5.5 A |
| Rated Operational Current AC-15 (Ie) | (240 V) 3 A |
| Rated Insulation Voltage (Ui) | acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 400 V |
| Rated Operational Current DC-13 (Ie) | (24 V) 2.8 A |
| Rated Operational Current DC-13 (Ie) | (125 V) 0.55 A |
| Rated Operational Current DC-13 (Ie) | (250 V) 0.27 A |
Why Proax for ABB LS21P41B11-U01?
Proax is an authorized distributor of ABB LS21P41B11-U01 and one of ABB's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | LS21P41B11U01 |
| Pack Size | 10 |
