Official DistributorBy ABB
SKU
MPN
1SFA619821R1006
Weight
0.154 kg

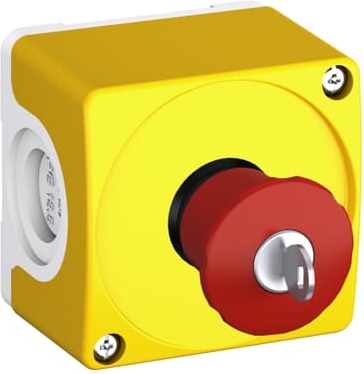

Assembled Enclosure - 40mm Mushroom Emergency Stop - Key Release - 1NO+1NC - Horisontally mounted- CE4K1-10R-11 included. Two 455 keys included
Technical Specifications
Dimensions
| Product Net Width | 0.065 m |
| Product Net Depth / Length | 0.109 m |
| Product Net Height | 0.065 m |
| Product Net Weight | 0.168 kg |
Technical
| Accessory Type | Enclosure |
| Color | Yellow/Light grey |
| Enclosure Type NEMA | Type1 |
| Enclosure Type NEMA | Type12 |
| Enclosure Type NEMA | Type13 |
| Enclosure Type NEMA | Type3R |
| Enclosure Type NEMA | Type4 |
| Enclosure Type NEMA | Type4X |
| Housing Material | Plastic |
| Number of Auxiliary Contacts NC | 1 |
| Number of Auxiliary Contacts NO | 1 |
| Rated Operational Voltage | 24 ... 300 V |
| Terminal Type | Screw Terminals |
| Tightening torque | 0.8 N·m |
| Wire Stripping Length | 8 mm |
Technical UL/CSA
| Pilot Duty UL/CSA | C300 |
| Pilot Duty UL/CSA | R300 |
Why Proax for ABB CEPY1-1006?
Proax is an authorized distributor of ABB CEPY1-1006 and one of ABB's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | CEPY11006 |
| Pack Size | 1 |
