9670005
Official DistributorBy Rittal
SKU
RIT9670005

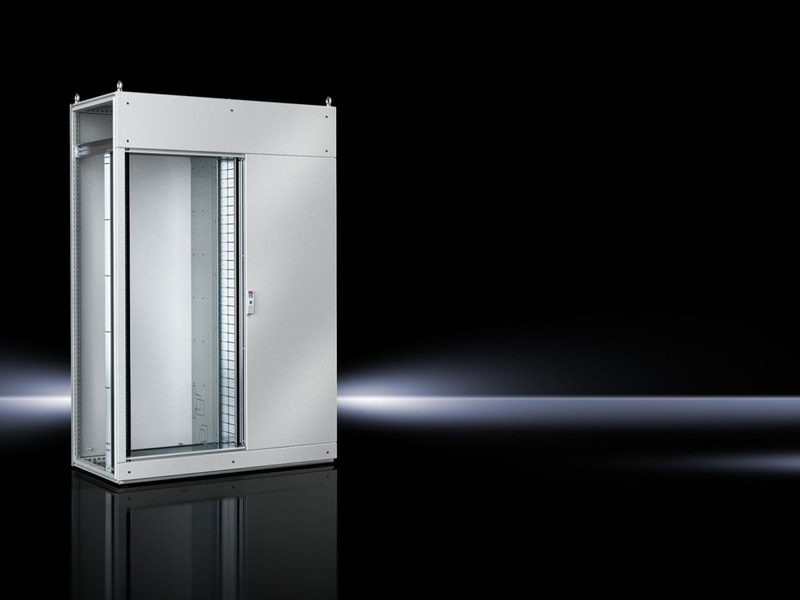

SV Fuse-switch disconnector enclosure, WHD: 1000x2000x600 mm, sheet steel
Supply includes
Enclosure frame with r/h door hinge, left side open
Roof
Rear panel
Base plates, three-piece
Lock: 3 mm double-bit
4 eyebolts
Locating frame for isolators with fuses (brands ABB SlimLine/Jean Müller SASIL)
Technical Specifications
Dimensions
| Width | 1,000 mm |
| Height | 2,000 mm |
| Depth | 600 mm |
Surface finish
| Enclosure frame | Dipcoat-primed |
| Door(s), roof, rear panel | Dipcoat-primed, powder-coated on the outside, textured paint |
| Base plates | Zinc-plated |
| Material | Carbon steel |
| Color | RAL 7035 |
| Test specification | IEC 61 439-1/-2 |
| Protection category IP to IEC 60 529 | Up to IP 3X, depending on the panels |
| EAN | 4028177814547 |
| ETIM 7.0 | EC000268 |
| ECLASS 8.0 | 27180101 |
Why Proax for Rittal 9670005?
Proax is an authorized distributor of Rittal 9670005 and one of Rittal's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
