7888850

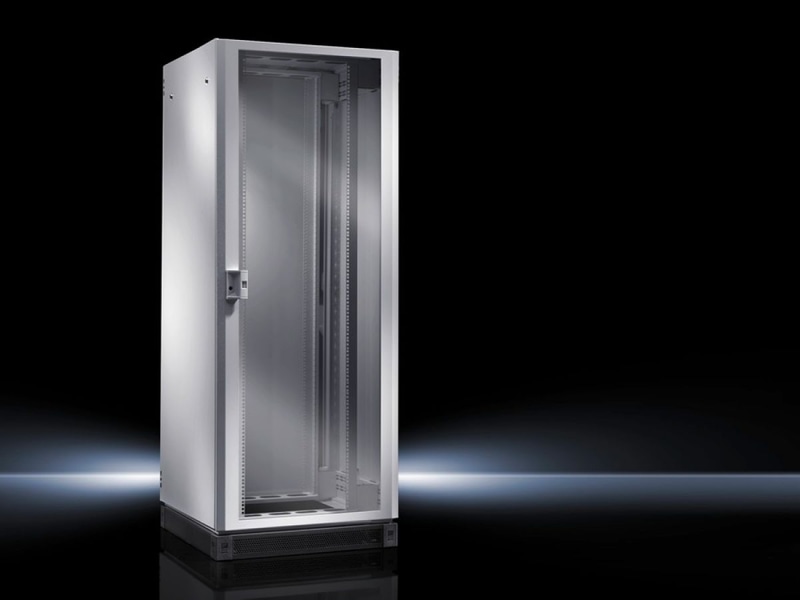

TE Network enclosure TE 8000, WHD: 800x2000+100x800 mm, 42 U, With glazed door, Pre-configured

Supply includes

Self-supporting 482.6 mm (19") mounting frames, front and rear, depth-variable
Glazed door at the front, incl. 130° hinge, design handle and security lock 3524 E
Carbon steel door at the rear, including 130° hinge, security lock 3524 E
Side panels, lockable, including security lock 3524 E
Base frame with maximum cut-out (for optional populating with module plates)
Roof plate, incl. concealed cut-out for cable entry and optional fan
4 M12 leveling feet incl. base/plinth adapter (supplied loose)
4 spacers, 20 mm, to raise the roof (supplied loose)
Base/plinth system VX, 100 mm, vented
Tested frame grounding to IEC 60 950, fitted
4 cable guide rails, for cable clamping in the enclosure depth via cable clamps (supplied loose)
10 cable shunting rings, metal, 125 x 65 mm (supplied loose)
12 x 19” fasteners 1 U, contacting (supplied)
50 multi-tooth screws, conductive (supplied loose)
Brush kit for cable entry in roof (supplied loose)
