7888840
Official DistributorBy Rittal

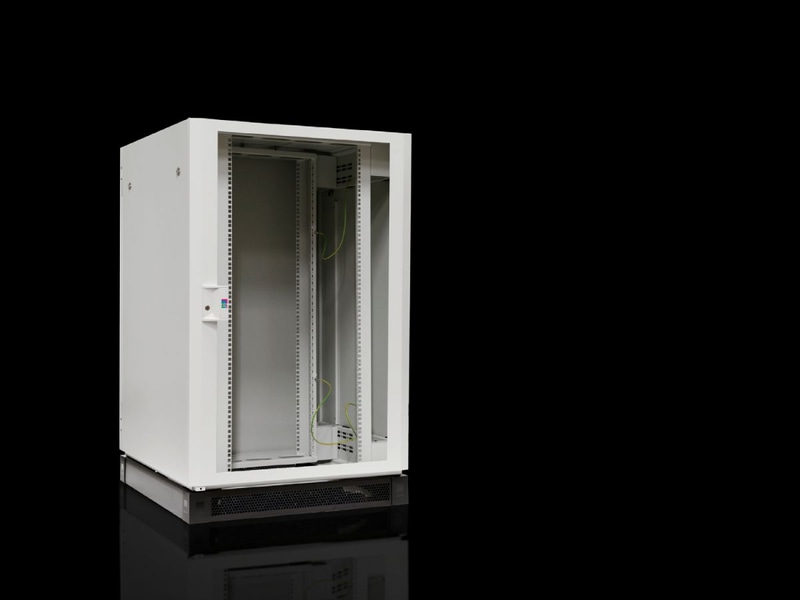

TE Network enclosure TE 8000, WHD: 800x1200+100x800 mm, 24 U, With glazed door, Pre-configured
Supply includes
Self-supporting 482.6 mm (19") mounting frames, front and rear, depth-variable
Glazed door at the front, incl. 130° hinge, design handle and security lock 3524 E
Carbon steel door at the rear, including 130° hinge, security lock 3524 E
Side panels, lockable, including security lock 3524 E
Base frame with maximum cut-out (for optional populating with module plates)
Roof plate, incl. concealed cut-out for cable entry and optional fan
4 M12 leveling feet incl. base/plinth adapter (supplied loose)
4 spacers, 20 mm, to raise the roof (supplied loose)
Base/plinth system VX, 100 mm, vented
Tested frame grounding to IEC 60 950, fitted
4 cable guide rails, for cable clamping in the enclosure depth via cable clamps (supplied loose)
10 cable shunting rings, metal, 125 x 65 mm (supplied loose)
12 x 19” fasteners 1 U, contacting (supplied)
50 multi-tooth screws, conductive (supplied loose)
Brush kit for cable entry in roof (supplied loose)
Dimensions
| Width | 800 mm |
| Height | 1,200 mm |
| Depth | 800 mm |
Material
| Housing | Carbon steel |
| Viewing door | Single-pane safety glass, 3 mm |
Surface finish
| Mounting frame | Dipcoat-primed |
| Enclosure panels | Powder-coated |
| Benefits | No frame structure |
| Color | RAL 7035 |
| Height units | 24 U |
| Height incl. base/plinth | 1,300 mm |
| Mounting space to 19" level, front/rear | 130 mm / 130 mm / |
| Distance between levels as delivered | 495 mm |
| Load Capacity | 4,000 N |
| Protection category IP to EN 60 529 | IP 20 |
| Base material | Carbon steel |
| Weight/packaging unit | 98 kg |
| EAN | 4028177801486 |
| ETIM 7.0 | EC002499 |
| ECLASS 8.0 | 27180207 |
