7030400
Official DistributorBy Rittal
SKU
RIT7030400
Weight
0.58 kg
Series CMC III Sensors

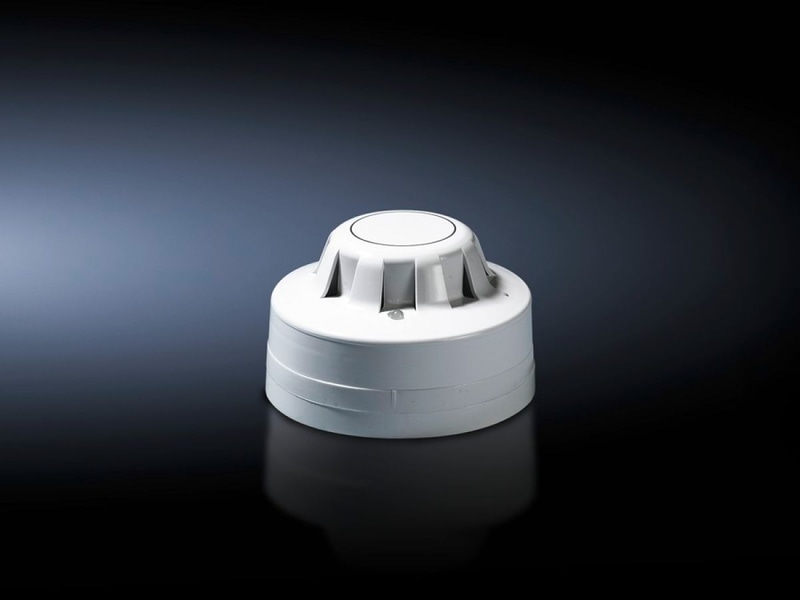

DK CMC III Smoke alarm, H: 50 mm, Ø 100 mm, IP 30
Supply includes
Sensor
Mounting plate
Assembly components
Mounting Bracket
Assembly components
CMC III Sensors
To monitor a range of parameters in enclosures or rooms.
Technical Specifications
Color
| Housing | White |
| Mounting Bracket | RAL 9005 |
Dimensions
| Height | 60 mm |
| Version | Smoke alarm |
| Benefits | Fast connection and automatic detection via plug & play |
| Applications | Enclosure monitoring in IT, industry and facility management |
| Function principle | Settings can be made via the CMC III Processing Unit or the IoT interface. |
| Material | Plastic |
| Connection to the CAN bus | Direct |
| Interfaces | 2 x RJ45 CAN bus |
| Numbers of subscribers of IoT Interface (max.) | 32 |
| Number of participants PU compact (max.) | 4 |
| Number of participants PU (max.) | 32 |
| Measuring technique | Silicone PIN photodiode/GaAs Infrared LED |
| Operating temperature range | 5 °C...45 °C |
| Ambient humidity (non-condensing) | 5...95 % |
| Weight/packaging unit | 0.58 kg |
| Customs tariff number | 85311095 |
| EAN | 4028177695818 |
| ETIM 7.0 | EC002627 |
| ECLASS 8.0 | 27189253 |
Why Proax for Rittal 7030400?
Proax is an authorized distributor of Rittal 7030400 and one of Rittal's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
