5850600
Official DistributorBy Rittal
SKU
RIT5850600
Weight
91.5 kg
This item is ineligible for free shipping due to its size/weight.

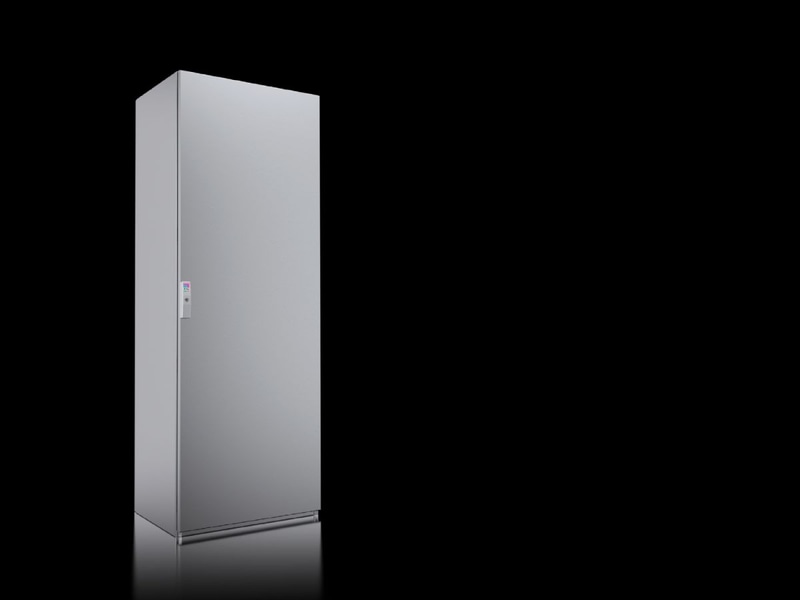

VX SE Free-standing enclosure system, WHD: 600x1600x400 mm, Stainless Steel, 1.4301, with mounting plate, single door at the front
Supply includes
Housing, solid top and sides
Door(s)
Right-hand door catch on single-door enclosures may be swapped to the left
Rear panel, detachable
Mounting plate
Base Plates
Lock: 3 mm double-bit
2 punched rails, 18 x 39 mm
VX SE free-standing enclosure system Stainless steel
Individual stainless steel enclosure with stable enclosure body, two integrated mounting levels, screw-fastened rear panel and door. Roof and sides from a single piece with roll-formed frame. Fully compatible with the VX25 baying system. Enclosure widths ranging from 600 to 1200 mm. Increases efficiency as side panels do not have to be mounted.
Technical Specifications
Dimensions
| Width | 600 mm |
| Height | 1,600 mm |
| Depth | 400 mm |
Material
| Housing | Stainless steel 1.4301 (AISI 304), 1.5 mm, exterior brushed |
| Door | Stainless steel 1.4301 (AISI 304), 2.0 mm, exterior brushed |
| Rear panel | Stainless steel 1.4301 (AISI 304), 1.5 mm, exterior brushed |
| Base plates | Stainless steel 1.4301 (AISI 304), 1.5 mm |
| Mounting plate | Carbon steel, 3.0 mm |
Mounting plate
| Width | 499 mm |
| Height | 1,496 mm |
Surface finish
| Housing, door and rear panel | Brushed, grain 400 |
| Base plates | Uncoated |
| Mounting plate | Zinc-plated |
| Protection category IP to EN 60 529 | IP 55 |
| Protection category NEMA | NEMA 12 |
| Type rating according to UL 50E | Type 1, 2, 3, 3R, 4, 12 |
| IK code | IK10 |
| Number of doors | 1 |
| Note | Due to the hardness of the material, we recommend using metal multi-tooth screws 2486.400 for the interior installation. |
| Base material | Stainless steel 1.4301 (AISI 304) |
| Weight/packaging unit | 91.5 kg |
| EAN | 4028177959361 |
| ETIM 7.0 | EC000261 |
| ECLASS 8.0 | 27180101 |
Why Proax for Rittal 5850600?
Proax is an authorized distributor of Rittal 5850600 and one of Rittal's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
