4055800
Official DistributorBy Rittal
SKU
RIT4055800
Weight
390 kg
This item is ineligible for free shipping due to its size/weight.

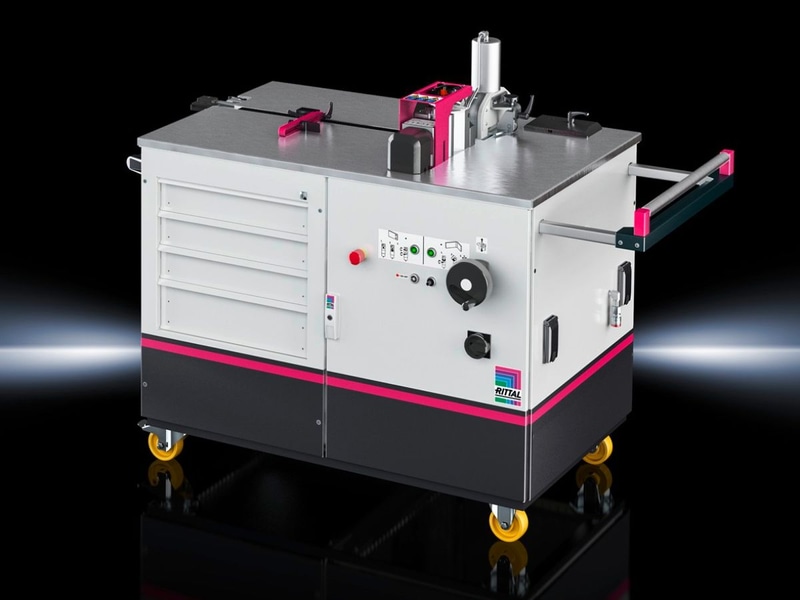

CW 120 – M mobile busbar machining. The CW 120 – M mobile station is ideal for bending, punching and cutting busbars.
Supply includes
Busbar processing mobile CW 120-M
Foot switch
Technical Specifications
Contact surface
| Depth | 811 mm |
| Width | 1,211 mm |
Machine dimensions
| Width | 1,380 mm |
| Height | 1,270 mm |
| Depth | 945 mm |
| Version | Electrical protractor Mandrel R10 Bending die External 230 V power connection Laterally-removable support extension for long rails External hydraulic connection for almost all machining possibilities 4 casters (2 lockable) Drawer runners Integrated hydraulic pump Laser pointer (auxiliary laser) beam power, laser class 1 Pull-out length stop |
| Benefits | High level of bending and punching accuracy |
| Workable material | Copper |
| Note | Leg length at a Z-bend depends on the material thickness |
| Working height | 974 mm |
| Rated power | 2.2 kW |
| Rated operating voltage | 230 V, 50 Hz/60 Hz |
| Length stop (max.) | 1,224 mm |
| Bending/Leg length (min.) | 50 mm |
| Bending angle (max.) | 90 ° |
| Bending (max.) | 120 x 12 mm |
| Z-Bend (min.) | 72 mm |
| Cutting (max.) | 120 x 12 mm |
| Stamping (max.) | 6.6 x 21.5 mm |
| Stamping/material thickness (max.) | 12 mm |
| Permissible operating pressure (p. max.) | 700 bar |
| Weight/packaging unit | 390 kg |
| Customs tariff number | 84624900 |
| EAN | 4028177920637 |
| ETIM 7.0 | EC000000 |
| ECLASS 8.0 | 36600804 |
Why Proax for Rittal 4055800?
Proax is an authorized distributor of Rittal 4055800 and one of Rittal's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
