4055700
Official DistributorBy Rittal
SKU
RIT4055700
Weight
60 kg
This item is ineligible for free shipping due to its size/weight.

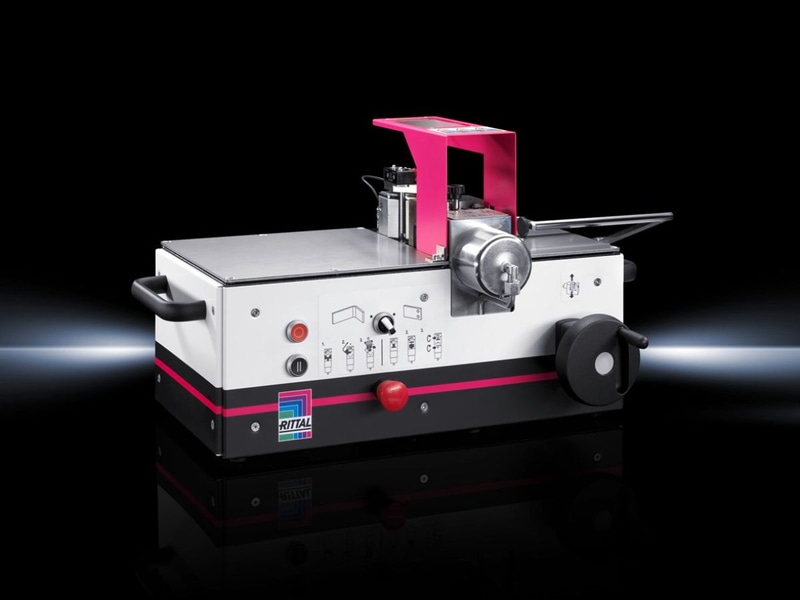

CW 120 – S stationary busbar bending and hole-punching unit. The bending and hole-punching unit in the CW 120 – S product series is ideal for bending and punching busbars. It supports the punching of round holes and slots.
Technical Specifications
Machine dimensions
| Width | 700 mm |
| Height | 410 mm |
| Depth | 461 mm |
Support area
| Width | 756 mm |
| Height | 426 mm |
| Depth | 461 mm |
| Version | Electrical protractor Length stop Mandrel R10 Bending die |
| Benefits | High level of bending and punching accuracy |
| Material thickness | 12 mm |
| Stamping/material width (max.) | 120 mm |
| Bending/Leg length (min.) | 50 mm |
| U-Bend (min.) | 100 mm |
| Z-Bend (min.) | 72 mm |
| Bending angle (max.) | 90 ° |
| Note | Leg length at a Z-bend depends on the material thickness |
| Bending (max.) | 120 x 12 mm |
| Stamping (max.) | 6.6 x 21.5 mm |
| Weight/packaging unit | 60 kg |
| Customs tariff number | 84624900 |
| EAN | 4028177920668 |
| ETIM 7.0 | EC000000 |
| ECLASS 8.0 | 36600804 |
Why Proax for Rittal 4055700?
Proax is an authorized distributor of Rittal 4055700 and one of Rittal's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
