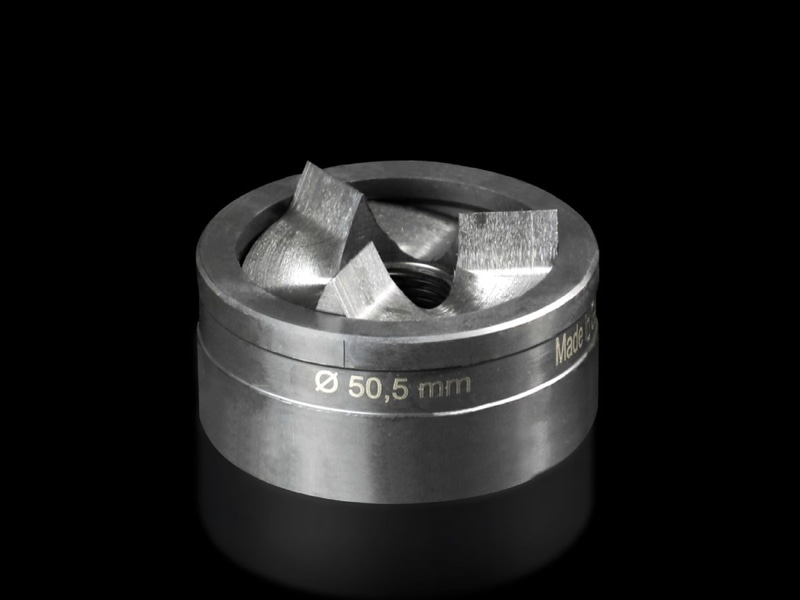

Round split plate punching machine For sheet steel, with 3-way pitch

For punching round cut-outs

Version	With 3-way split
Max. material thickness that can be machined for sheet steel	3 mm
Ø hole punch	50.5 mm
For thread	M50
Note	Tension screws with a ball bearing must be used when operating with a wrench
Suitable for hydraulic bolt order number	4055.663
Tension screw (Ø x L)	19 x 75 mm

Hydraulic tension screw Ø	19 mm
Weight/packaging unit	0.608 kg
Customs tariff number	82034000
EAN	4028177808782
ETIM 7.0	EC000156
ECLASS 8.0	21049047
