Official DistributorBy Rittal
SKU
Weight
0.349 kg

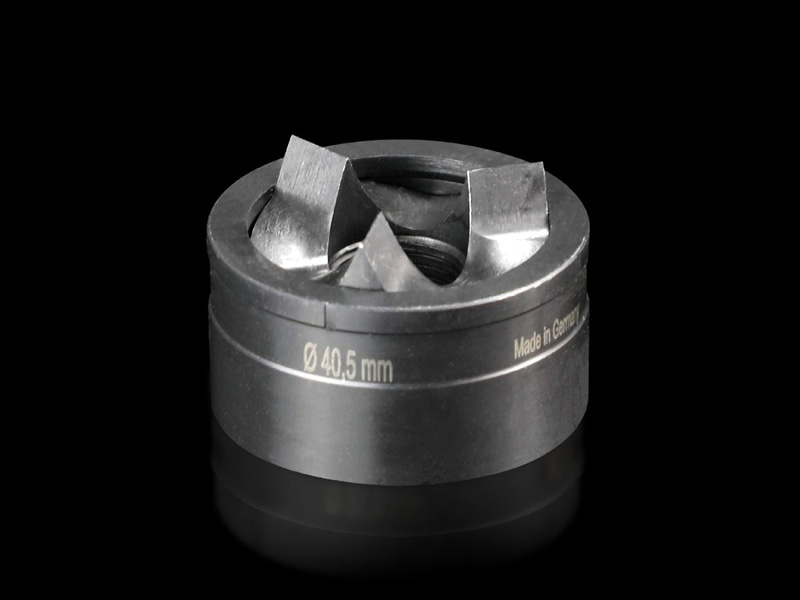

Splitter hole punch, round for sheet steel, with triple splitting
Supply includes
Die
Stamp
Round split plate punching machine For sheet steel, with 3-way pitch
For punching round cut-outs
Technical Specifications
| Version | With 3-way split |
| Max. material thickness that can be machined for sheet steel | 3 mm |
| Ø hole punch | 40.5 mm |
| For thread | M40 |
| Note | Tension screws with a ball bearing must be used when operating with a wrench |
| Suitable for hydraulic bolt order number | 4055.663 |
| Tension screw (Ø x L) | 19 x 75 mm |
| Hydraulic tension screw Ø | 19 mm |
| Weight/packaging unit | 0.349 kg |
| Customs tariff number | 82073010 |
| EAN | 4028177808744 |
| ETIM 7.0 | EC000156 |
| ECLASS 8.0 | 21049047 |
