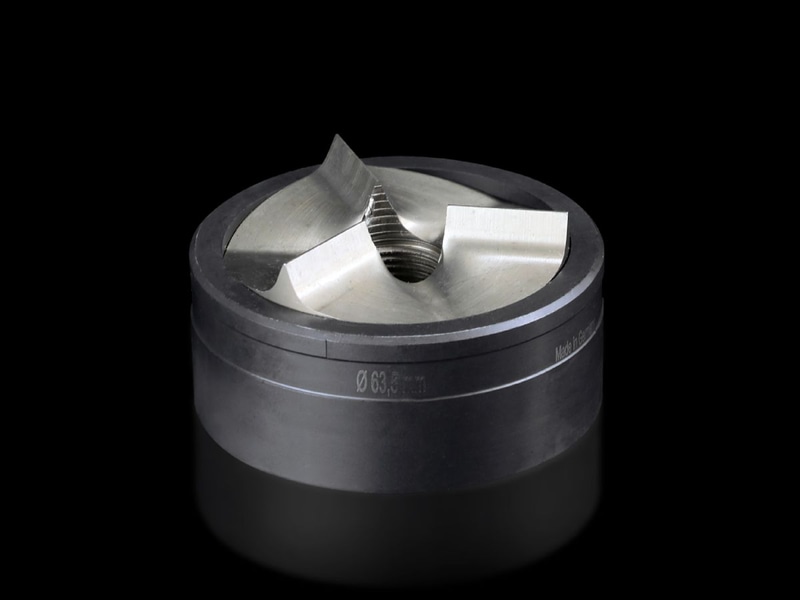

Round split plate punching machine For stainless steel, with 3-way pitch

For punching round cut-outs

Version	With 3-way split
Max. material thickness that can be machined for stainless steel	2.5 mm
Ø hole punch	63.5 mm
For thread	M63
Note	Tension screws with a ball bearing must be used when operating with a wrench
Suitable for hydraulic bolt order number	4055.663
Tension screw (Ø x L)	19 x 75 mm

Hydraulic tension screw Ø	19 mm
Weight/packaging unit	1.025 kg
Customs tariff number	82073010
EAN	4028177808164
ETIM 7.0	EC000156
ECLASS 8.0	21049047

Proax is an authorized distributor of Rittal 4055163 and one of Rittal's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.

Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!

Short Lead Time

Highly Trained Staff

Live Chat

Technical Support

Local Inventory

60+ Years Experience

Pack Size

4055163

Supply includes

Round split plate punching machine For stainless steel, with 3-way pitch

Why Proax for Rittal 4055163?
