4055085
Official DistributorBy Rittal
SKU
RIT4055085
Weight
5.85 kg

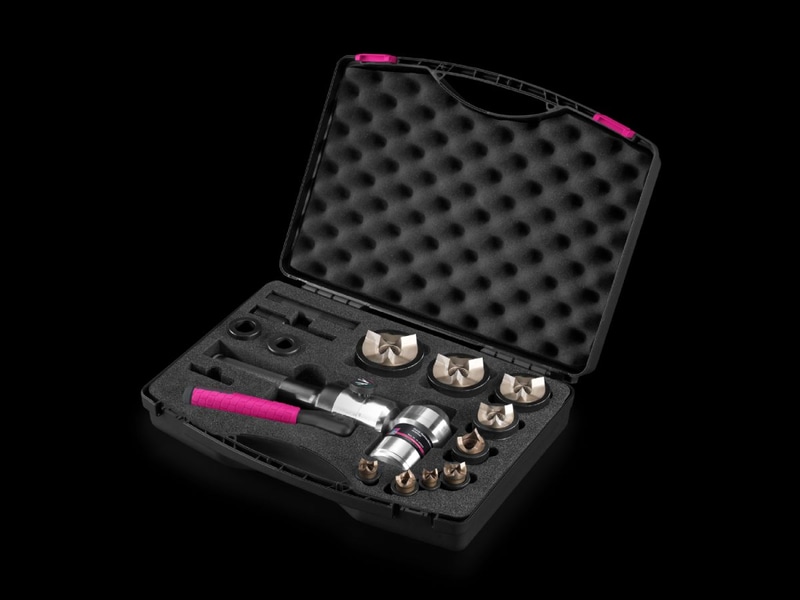

Hand hydraulic punch set 90° PG 9,11,13,16,21,29,36,42,48 mm
Supply includes
Manual hydraulic punch
9 split sheet metal punch with 3-fold pitch
Hydraulic screw Ø 19 mm
Hydraulic screw Ø 9.5/19 mm
HSS pilot drill Ø 10 mm
Spacer bushing set (3-part)
Plastic case
Technical Specifications
| Version | With cylinder head offset at 90° and rotatable through 360° |
| Benefits | Extend tool life with a built-in pressure relief valve |
| Max. material thickness that can be machined for sheet steel | 2 mm 2 mm 2 mm 2 mm 2 mm 3 mm 3 mm 3 mm 3 mm |
| Ø hole punch | 15.2 mm 18.6 mm 20.4 mm 22.5 mm 28.3 mm 37 mm 47 mm 54 mm 60 mm |
| Weight/packaging unit | 5.85 kg |
| Customs tariff number | 84678900 |
| EAN | 4028177807969 |
| ETIM 7.0 | EC001085 |
| ECLASS 8.0 | 21049046 |
Why Proax for Rittal 4055085?
Proax is an authorized distributor of Rittal 4055085 and one of Rittal's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
