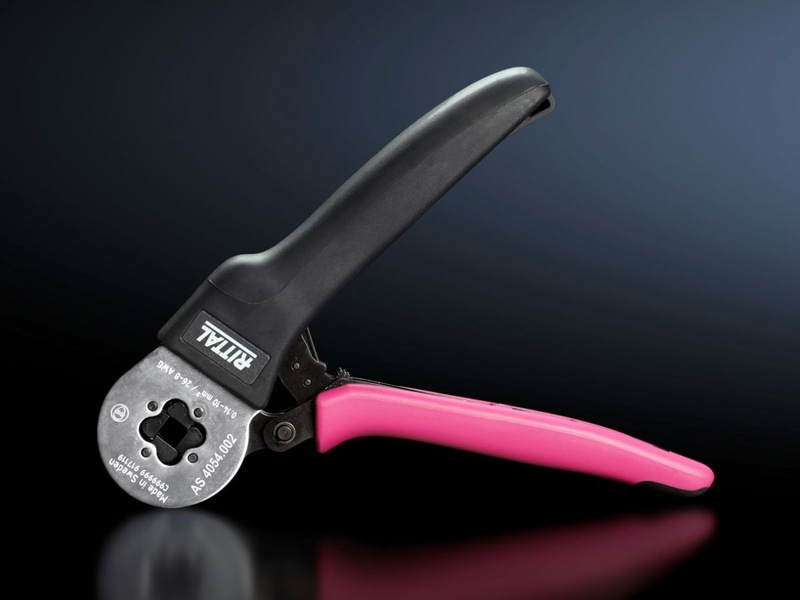

Crimping tool For wire end ferrules

For crimping wire end ferrules without an insulating sleeve according to DIN 46228 Part 1 and wire end ferrules with an insulating sleeve according to DIN 46228 Part 4.

Dimensions

Length

176 mm

Version	Straight
Benefits	Minimal force required for large conductor cross-sections
Material	High-grade special tool steel
Surface finish	Matt, chromium-plated
Color	Handle: Anthracite and Rittal Power Pink
Crimping	Square crimp
Cable entry direction	Side
AWG	26 ‐ 8
For cross section	0.14 ‐ 10 mm²
Weight/packaging unit	0.362 kg
Customs tariff number	82032000
EAN	4028177930957
ETIM 7.0	EC000168
ECLASS 8.0	21043811
