4051539
Official DistributorBy Rittal
SKU
RIT4051539
Weight
4 kg
Series Wire end ferrule on belt

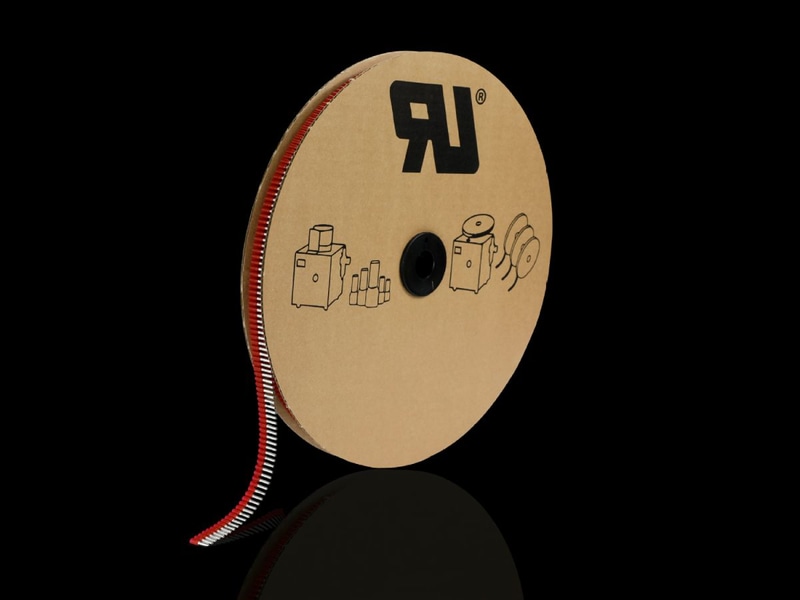

Wire end ferrules 1.5 mm² x 10 mm AWG 16 multinorm, packs of 4,000 pc(s)., colour: red, delivery form: on belt (in accordance with the Rittal colour code), 1.5 mm²
Wire end ferrule on belt
With plastic flange.
Technical Specifications
Material
| Plastic collar | Polypropylene |
| Technical specifications | Heat resistant up to 105 °C |
| Color | Red |
| Suitable for | Enclosure type: Automatic crimping machine RC |
| Length | 10 mm |
| AWG | 16 |
| Internal diameter | 4 mm |
| Rittal color code | Yes |
| For cross section | 1.5 mm² |
| Multinorm | Yes |
| Note | UL-certified in conjunction with the relevant tools, e.g. crimping machines. |
| Delivery form | Taped |
| Packaging unit | 4,000 pc(s). |
| Weight/packaging unit | 4 kg |
| Customs tariff number | 85369010 |
| EAN | 4028177937871 |
| ETIM 7.0 | EC000005 |
| ECLASS 8.0 | 36659290 |
