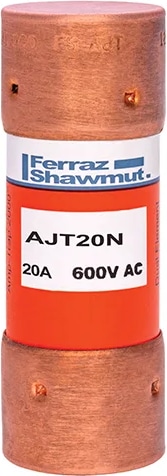

AJT20N
Official DistributorBy Mersen
SKU
MERAJT20N
Weight
0.044 kg
Fuse AJT - Class J - Time-delay 600VAC 400VDC 20A Ferrule Amp-Trap 2000®
Amp-Trap 2000® AJT fuses provide non-indication as well as a SmartSpot visual open fuse indicator. With advanced material technology the AJT fuse provides IEC Type 2 No Damage protection to main, feeder, and branch circuits, for all types of loads — yet, they require only half the mounting space needed for 600VAC Class RK fuses. AJT’s time-delay characteristics are ideal for handling typical motor and transformer inrush currents, while also providing superior current-limiting ability.
Technical Specifications
| Rated Voltage Ac Ul | 600 V |
| Rated Voltage Dc Ul | 400 V |
| Frequency | 50/60 Hz |
| Ampere Rating | 20 A |
| Fuse Class | Class J |
| Body Insulating Material | GMG |
| Product Length | 57.2 mm |
| Speed Characteristic | Time Delay |
| Mounting | Clip |
| ac max ir breaking capacity | 200 kA |
| Connection Terminal Material | Tin-Plated Copper |
| Connection Terminal Type | Ferrule |
| Product Diameter | 20.7 mm |
| data/description | Fuse AJT - Class J - Time-delay 600VAC 400VDC 20A Ferrule Amp-Trap 2000® |
Why Proax for Mersen AJT20N?
Proax is the authorized distributor of Mersen AJT20N. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 10 |
