9791025
Official DistributorBy Rittal
SKU
RIT9791025
Weight
9.5 kg

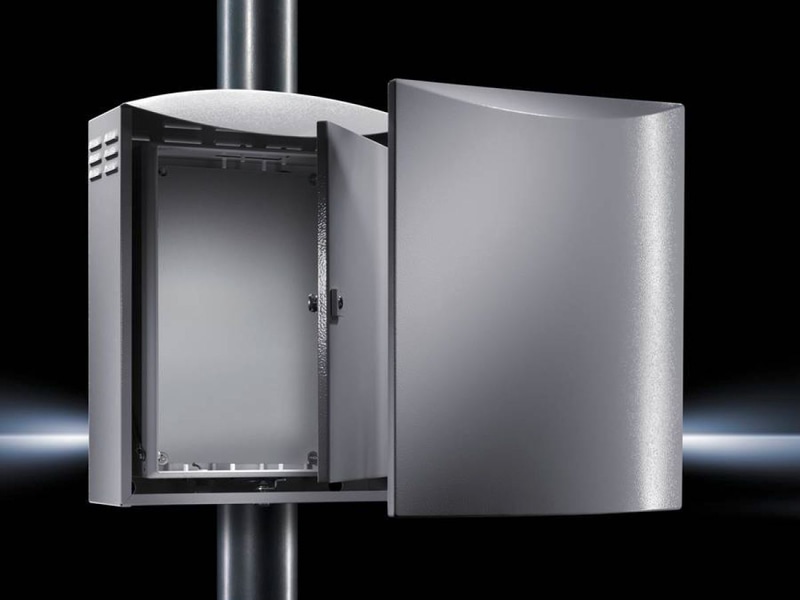

CS Wall-mounted enclosure, WHD: 420x560x210 mm, aluminum, with mounting plate, Enclosure-within-an-enclosure concept
Supply includes
Double-walled outdoor housing, fully preconfigured
Inner enclosure with mounting plate, gland plate and security lock
Mounting bracket for enclosure internal thermostat or hygrostat
Outer housing with designer cover and security lock 3524 E
2 C rails on the rear panel
Technical Specifications
Clearances
| Clearance width | 330 mm |
| Clearance height | 420 mm |
| Clearance depth | 145 mm |
Inner housing
| Width | 350 mm |
| Height | 440 mm |
| Depth | 170 mm |
Lock
| Lock version | Cam |
| Number locks | 1 |
Material
| Enclosure and mounting plate | Aluminum AlMg3 |
| Door inner casing | Stainless steel 1.4301 (AISI 304) |
Mounting plate
| Width | 320 mm |
| Height | 410 mm |
| Surface finish | Housing: powder-coated, UV-resistant pure polyester |
| Color | RAL 7035 |
| Protection category IP to IEC 60 529 | IP 55 |
| Note | Delivery times on request. |
| Base material | Aluminum |
| Weight/packaging unit | 9.5 kg |
| Customs tariff number | 94032080 |
| EAN | 4028177193703 |
| ETIM 7.0 | EC000261 |
| ECLASS 8.0 | 27180101 |
