9784540
Official DistributorBy Rittal

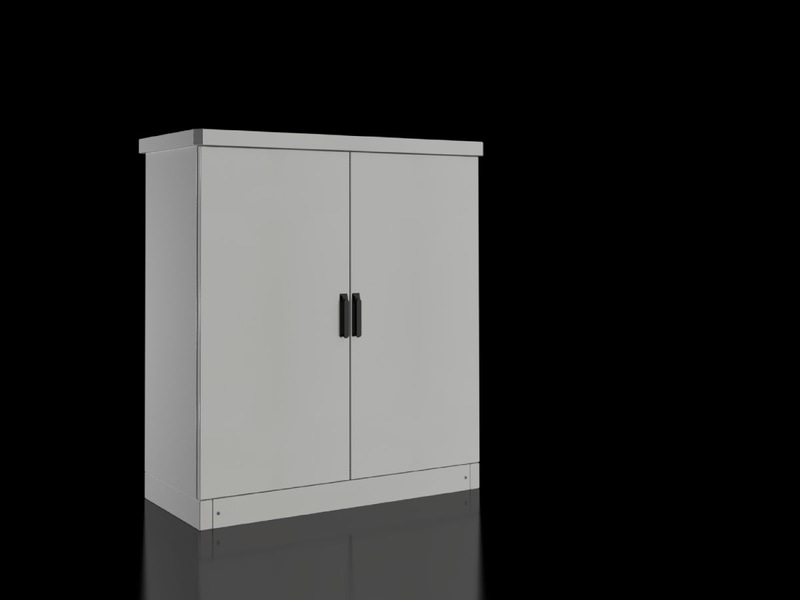

CS New Basic enclosure, WHD: 1200x1200x500 mm, aluminum, with 100 mm transport plinth and rain canopy, two doors at the front
Supply includes
Single-walled outdoor enclosure, fully preconfigured
Basic enclosure with gland plate, three-part
25 mm system punchings in the roof, base, front and in the enclosure depth
Front door(s) with door stay, swing lever handle and semi-cylinder, lock BJ20027
Transport plinth with screw-fastened trim panels front and rear
Enclosure with width 1200 mm has two 600 mm-wide mounting panels
Rain canopy
Dimensions
| Width | 1,200 mm |
| Height | 1,200 mm |
| Height of base/plinth | 100 mm |
| Overall height | 1,355 mm |
| Depth | 500 mm |
| Rain canopy width | 1,250 mm |
| Rain canopy height | 55 mm |
| Rain canopy depth | 550 mm |
| Clearance width | 512 mm |
| Clearance height | 1,112 mm |
| Clearance depth | 449 mm |
| Material | Aluminum AlMg3 |
| Surface finish | Powder-coated UV-resistant pure polyester |
| Color | RAL 7035 |
| Design Centre bar | With removable centre bar, 2 lockable doors |
| Number of doors | 2 |
| Protection category IP to IEC 60 529 | IP 55 |
| Standard | NEMA 3R |
| IK code | IK09 |
| Base material | Aluminum |
| Weight/packaging unit | 66 kg |
| EAN | 4028177569218 |
| ETIM 7.0 | EC000261 |
| ECLASS 8.0 | 27180101 |
Why Proax for Rittal 9784540?
Proax is an authorized distributor of Rittal 9784540 and one of Rittal's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
| Pack Size | 1 |
