9783510
Official DistributorBy Rittal

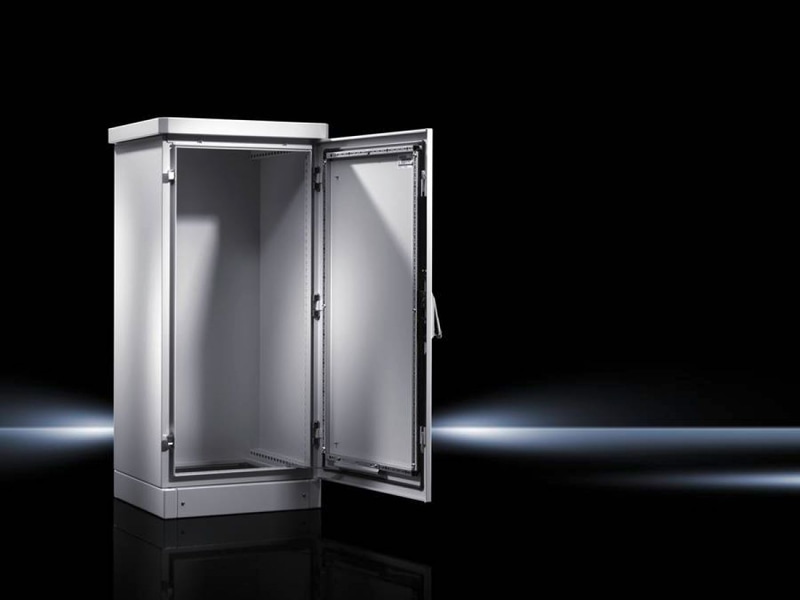

Outdoor housing with 100 mm transport base/plinth and rain canopy projecting on all sides.
Supply includes
Single-walled outdoor enclosure, fully preconfigured
Basic enclosure with gland plate, three-part
25 mm system punchings in the roof, base, front and in the enclosure depth
Front door(s) with door stay, swing lever handle and semi-cylinder, lock BJ20027
Transport plinth with screw-fastened trim panels front and rear
Enclosure with width 1200 mm has two 600 mm-wide mounting panels
Rain canopy
Dimensions
| Width | 800 mm |
| Height | 800 mm |
| Height of base/plinth | 100 mm |
| Overall height | 955 mm |
| Depth | 400 mm |
| Rain canopy width | 850 mm |
| Rain canopy height | 55 mm |
| Rain canopy depth | 450 mm |
| Clearance width | 712 mm |
| Clearance height | 712 mm |
| Clearance depth | 349 mm |
| Material | Aluminum AlMg3 |
| Surface finish | Powder-coated UV-resistant pure polyester |
| Color | RAL 7035 |
| Protection category IP to IEC 60 529 | IP 55 |
| Standard | NEMA 3R |
| IK code | IK09 |
| Base material | Aluminum |
| Weight/packaging unit | 37 kg |
| EAN | 4028177569119 |
| ETIM 7.0 | EC000261 |
| ECLASS 8.0 | 27180101 |
