9673458
Official DistributorBy Rittal
SKU
RIT9673458
Weight
12.1 kg
This product is Not Cancellable/Not Returnable

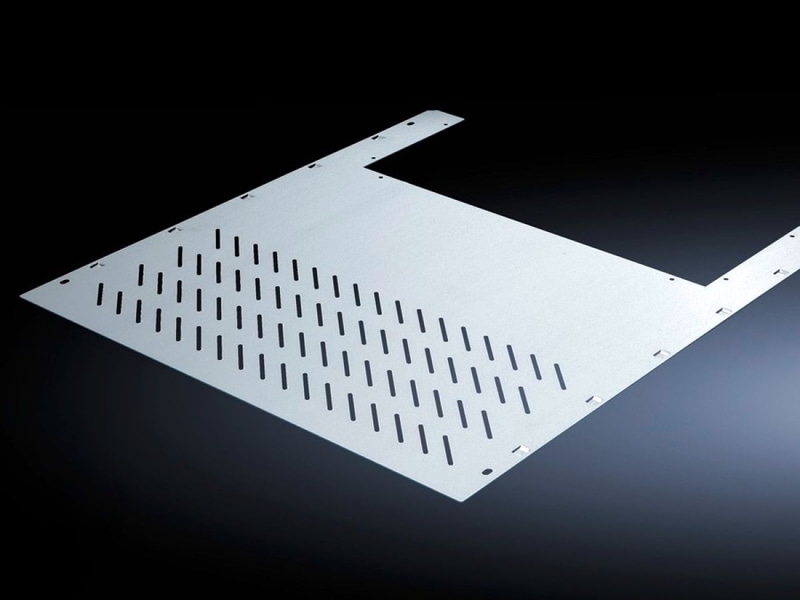

SV Compartment divider, WT: 506x788 mm, for TS (W: 600 mm), with busbar gland
Technical Specifications
Dimensions
| Width | 506 mm |
| Depth | 788 mm |
Mounting cut-out
| Width | 412 mm |
| Depth | 201 mm |
Suitable for
| Width | = 600 mm |
| Version | With vent |
| Material | Carbon steel, 1.25 mm |
| Surface finish | Zinc-plated |
| For compartment depth | 800 mm |
| Mounting tip | 2 mounting brackets each are required to install the functional space dividers. |
| Packaging unit | 4 pc(s). |
| Weight/packaging unit | 12.1 kg |
| Customs tariff number | 73269098 |
| EAN | 4028177571051 |
| ETIM 7.0 | EC002525 |
| ECLASS 8.0 | 27400613 |
