9673454
Official DistributorBy Rittal
SKU
RIT9673454
Weight
7.248 kg

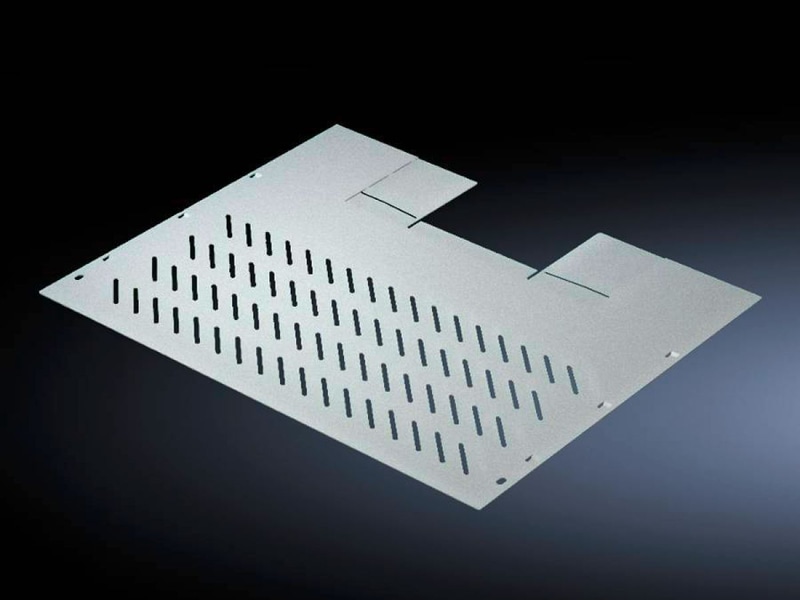

SV Compartment divider, WT: 506x413 mm, for TS (W: 600 mm), with busbar gland
Technical Specifications
Dimensions
| Width | 506 mm |
| Depth | 413 mm |
Suitable for
| Width | = 600 mm |
| Version | With vent |
| Material | Carbon steel, 1.25 mm |
| Surface finish | Zinc-plated |
| For compartment depth | 400 mm |
| Position of the bar system in the functional space | – |
| Mounting tip | Two mounting brackets for each functional space divider are required for installation. |
| Packaging unit | 4 pc(s). |
| Weight/packaging unit | 7.248 kg |
| Customs tariff number | 73269098 |
| EAN | 4028177543416 |
| ETIM 7.0 | EC002525 |
| ECLASS 8.0 | 27400613 |
