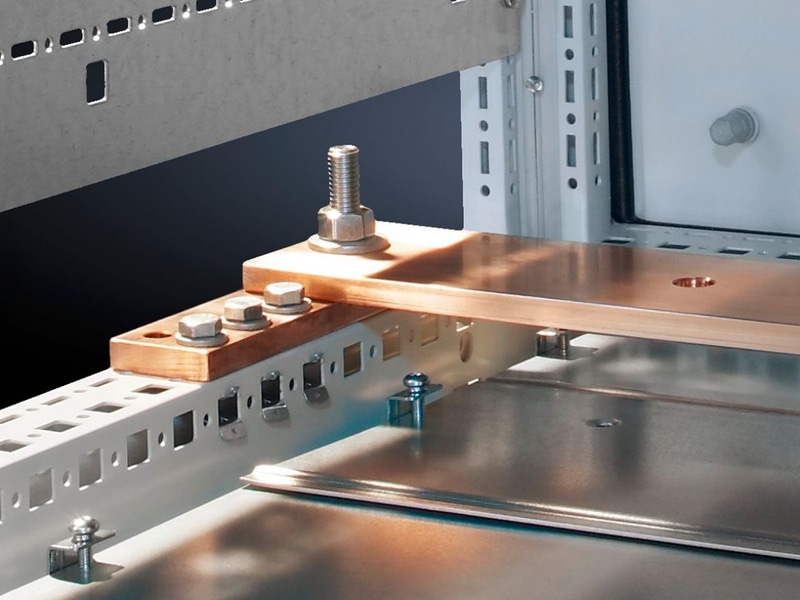

PE/PEN Combination Angle, E-Cu for PE/PEN combinations

The PE/PEN combination, comprising busbars, combination angles and baying brackets, supports type-tested configurations as per IEC 61 439-1.

Suitable for busbars

Width	40, 80
Height	10, 10 mm

Benefits	The pre-assembled combination angles, baying brackets and the busbars individually cut to the enclosure width make for extremely time and cost-efficient assembly
Applications	Form 2-4
Material	E-Cu
Approved short-circuit current capability	Icw\|60\|kA, 1 sec.
OUT_CROSS_SECTION_COL_SM	40 ‐ 10 mm
Packaging unit	4 pc(s).
Weight/packaging unit	2.36 kg
Copper weight (kg per piece)	0.44
Customs tariff number	74198090
EAN	4028177555808
ETIM 7.0	EC000329
ECLASS 8.0	27400605
