9640350
Official DistributorBy Rittal
SKU
RIT9640350
Weight
1.959 kg

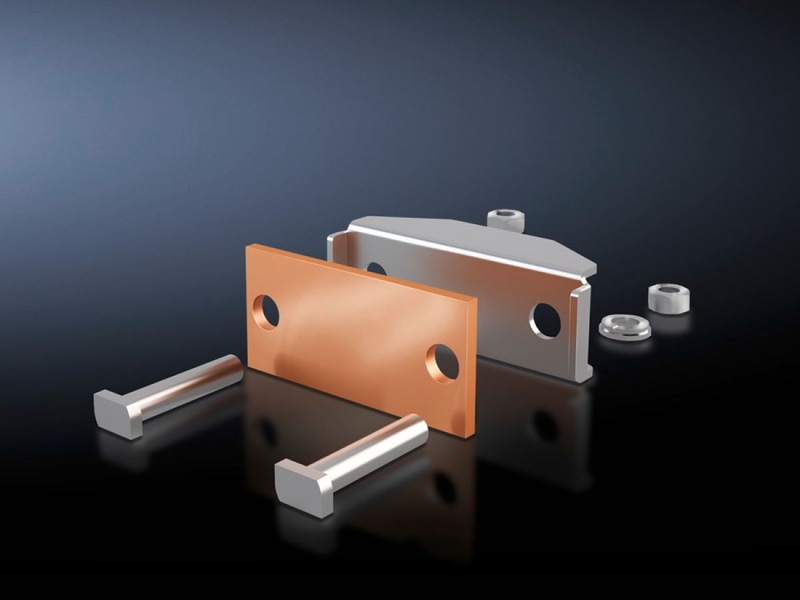

SV Connection plate, clamping area WH: 100x20 mm, (Maxi-PLS 1600/2000)
Supply includes
Assembly components
Connection Plate for laminated copper bars
For the connection of laminated copper bars.
Technical Specifications
Material
| Connection plate | E-Cu |
| Pressure piece | Stainless steel |
Suitable for laminated copper bars
| Qty. | 2 |
| Number of lamina | 10 |
| Lamina width | 100 mm |
| Lamina thickness | 1 mm |
| Suitable for busbars | Maxi-PLS 45 S/45 |
| Clamping area for laminated copper bars (W x H) | 100 x 20 mm |
| Packaging unit | 3 pc(s). |
| Weight/packaging unit | 1.959 kg |
| Copper weight (kg per piece) | 0.27 |
| Customs tariff number | 85369010 |
| EAN | 4028177238695 |
| ETIM 7.0 | EC002498 |
| ECLASS 8.0 | 27379201 |
Why Proax for Rittal 9640350?
Proax is an authorized distributor of Rittal 9640350 and one of Rittal's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
