9640150
Official DistributorBy Rittal
SKU
RIT9640150
Weight
2.254 kg
Series System Attachment

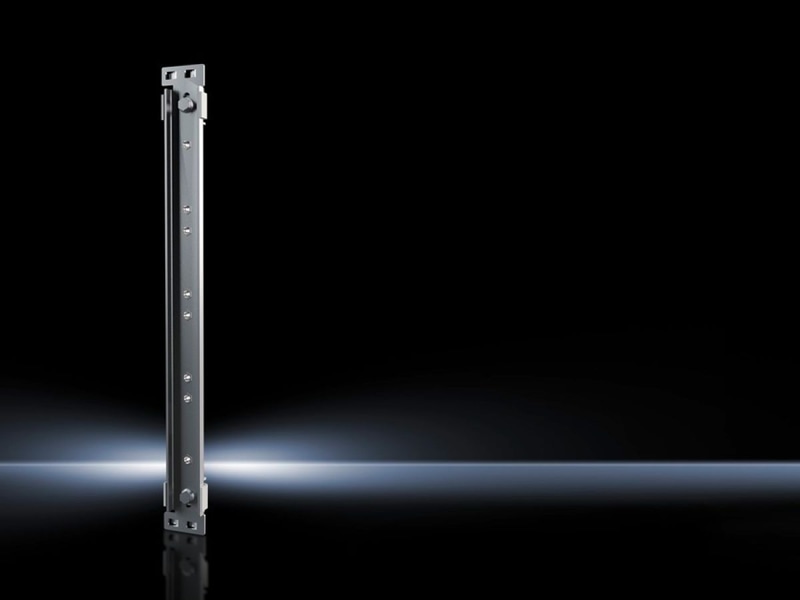

SV System attachment, for busbar support, SV 9649000/160 (Maxi-PLS 1600/2000), 185 mm bar centre distance, for TS rear section (enter)
System Attachment
To install busbar supports.
Technical Specifications
| Version | for mounting in the rear section, center (185 mm) |
| Applications | For installing busbar supports |
| Material | Stainless steel |
| No. of poles/bar center distance | 3-pole 185 mm |
| Suitable for busbars | Maxi-PLS 1600 |
| Suitable for | Enclosure type: TS 8 |
| Packaging unit | 2 pc(s). |
| Weight/packaging unit | 2.254 kg |
| Customs tariff number | 73269098 |
| EAN | 4028177266452 |
| ETIM 7.0 | EC001900 |
| ECLASS 8.0 | 27400613 |
