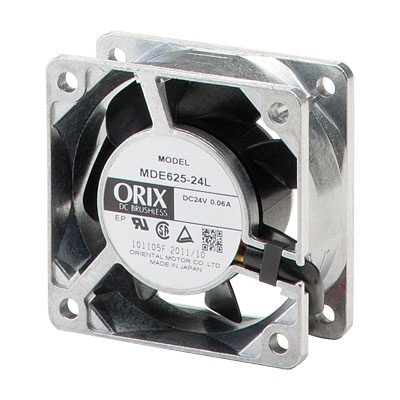

Cooling Fan
MDE625-24L
Official DistributorSKU
ORIMDE62524L
Series MD Series DC Axial Fans
2.36 in. (60 mm) DC Axial Fan
Axial fans use a propeller to create a flow of air the direction of the axis of rotation. Because they create a large airflow, axial fans are optimal for a wide variety of cooling and other airflow needs.- 100,000 hour life expectancy
Documents
Technical Specifications
| Fan Type | Axial Fan |
| Frame Size | 2.36 in |
| Thickness | 0.98 in. |
| Power Supply | 24 VDC |
| Current | 0.06 |
| Type | E Type (Long Life) |
| Function | Stall Alarm - Electronic |
| Connection Type | Lead Wire |
| Speed (r/min) | 3800 |
| Max. Air Flow | 18.7 CFM |
| Max. Static Pressure | 0.161 inH2O |
| Noise Level | 28 db (A) |
| RoHS Compliant | These products do not contain substances that exceed the regulation values in the RoHS Directive. |
| Safety Standards | TUV |
| CE Marking | EMC Directives |
| Insulation resistance | 10 MΩ or more when 500 VDC is applied between the windings and the frame under normal ambient temperature and humidity. |
| Dielectric strength | Sufficient to withstand 500 VAC at 50 Hz or 60 Hz applied between the windings and the frame for 1 minute after continuous operation under normal ambient temperature and humidity |
| Overheat Protection | Equipped with a built-in burnout protection circuit |
| Ambient temperature range | -4ºF ~ 158ºF (-20ºC ~ 70ºC) |
| Alarm Type | Electronic |
| Alarm Activation Speed | When locked |
| Output Mode | Open-collector output |
| Output Condition | Operation: L level (Internal transistor ON)When locked: H level (Internal transistor OFF) |
| Maximum Rating | Maximum applied voltage: 27.6 VDC max.Maximum current: 5 mA max. |
| Delay Function | Not built-in: External delay circuit is required to prevent alarm detection when starting the fan. The delay time should be at least 1 second. |
Why Proax for Oriental Motor MDE625-24L?
Proax is the authorized distributor of Oriental Motor MDE625-24L. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | MDE62524L |
| Pack Size | 1 |
