AC Gear Motor
H2L32H80-WF4AEN
Official DistributorSKU
ORIH2L32H80WF4AEN

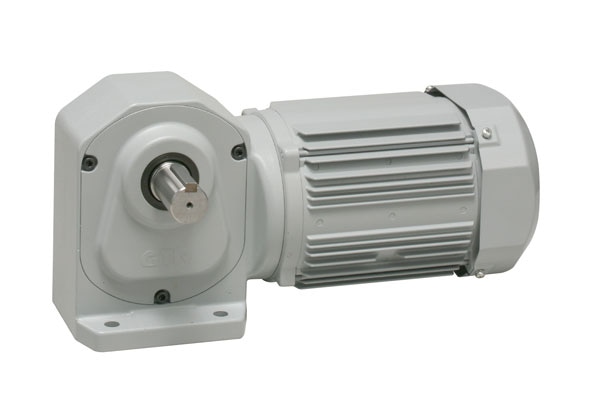

Brother Gearmotor H2 High Torque Washdown AC Gear Motor (IP65)
This product has been discontinued, please contact your local sales office for more information.Documents
Technical Specifications
| Motor Type | Induction |
| Frame Size | 8.07 in |
| Output Power | 1/2 HP |
| Voltage (VAC) | Three-Phase 208/230/460 VAC |
| Frequency (Hz) | 60 |
| Shaft/Gear Type | Right-Angle Solid Shaft Gearhead |
| Gear Ratio (X:1) | 80 :1 |
| Mount | Foot Mount |
| Shaft Arrangement | Left Shaft |
| Output Shaft Diameter | 1-1/4 in. |
| Type | Terminal Box |
| Electromagnetic Brake | Not Equipped |
| Rated Torque | 1308 lb-in |
| Rated Speed (rpm) | 21 |
| Permissible Overhung Load | 771.10 lb |
| RoHS Compliant | Yes |
| Safety Standards | UL |
| CE Marking | Low Voltage Directive |
| Insulation Class | Class F |
| Degree of Protection | IP65 |
| Full Load [nmotor] | 1700 RPM (208 V)1720 RPM(230 V)1720 RPM (460 V) |
| Full Load Current [Imotor] | 1.8 A (208 V)1.8 A (230 V)0.9 A (460 V) |
| Starts per Minute | 10 |
| Type (Brother) | H2 |
| Frame (Brother) | 32 |
Why Proax for Oriental Motor H2L32H80-WF4AEN?
Proax is the authorized distributor of Oriental Motor H2L32H80-WF4AEN. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | H2L32H80WF4AEN |
| Pack Size | 1 |
