9614100
Official DistributorBy Rittal
SKU
RIT9614100
Weight
0.3 kg

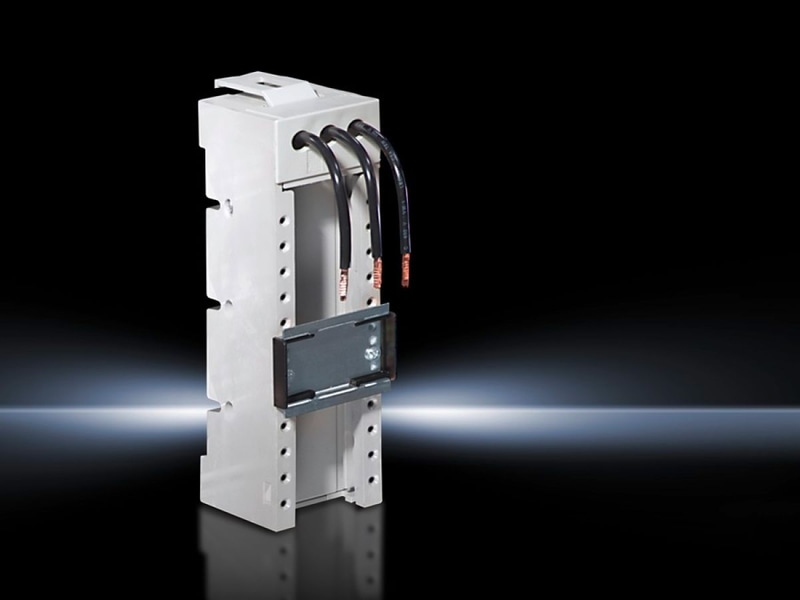

SV Mini-PLS component adaptor, 25 A, 690 V, 3-pole, connection cable AWG 12, WH: 45x160 mm, support rail H: 7,5 mm
Technical Specifications
Dimensions
| Width | 45 mm |
| Height | 160 mm |
| Material | Polyamide Fire protection corresponding to UL 94-V0 |
| Color | RAL 7035 |
| Connection cables (AWG) | AWG 12 |
| Rated operating voltage | 690 V, 3~ |
| Rated current max. | 25 A |
| Support rails Qty/height | 1 / 7.5 mm |
| To fit manufacturer (model) | ABB Eaton Schneider Electric Siemens MS116 PKZM0 bis 25 A PKZM01 bis 25 A PKE12 PKE32 bis 25 A GV2-P bis 25 A GV2-RT GV2-LE10 GV3 bis 25 A 3RV10 21 3RV20 21 bis 25 A 3RV10 11 3RV20 11 |
| Weight/packaging unit | 0.3 kg |
| Copper weight (kg per piece) | 0.041 |
| Customs tariff number | 85369095 |
| EAN | 4028177192546 |
| ETIM 7.0 | EC001531 |
| ECLASS 8.0 | 27370304 |
Why Proax for Rittal 9614100?
Proax is an authorized distributor of Rittal 9614100 and one of Rittal's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
