9612000
Official DistributorBy Rittal
SKU
RIT9612000
Weight
1.08 kg
This product is Not Cancellable/Not Returnable

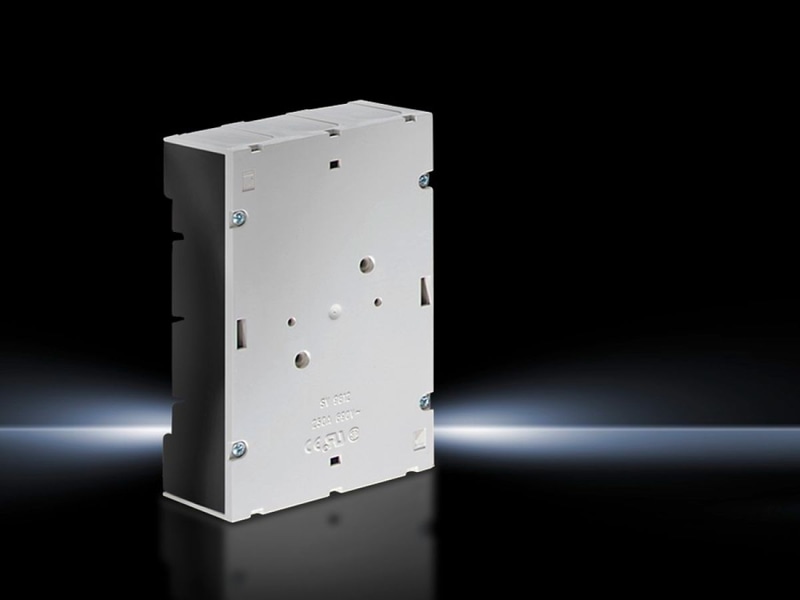

SV Mini-PLS busbar connection adaptor, 250 A, 690 V, 3-pole, round conductor connection 10-120 mm², clamping area WH: 17x15 mm
Technical Specifications
Color
| Chassis | RAL 9011 |
Dimensions
| Width | 115 mm |
| Height | 182 mm |
| Material | Polyamide Fire protection corresponding to UL 94-V0 |
| Height | 15 mm |
| Width | 17 mm |
| Note | Wire end ferrules should be used with fine stranded wire conductors |
| Cable outlet | Top/bottom |
| Rated operating voltage | 690 V |
| Rated current max. | 250 A |
| Connection for round conductor cross-sections | 10 ‐ 120 mm² |
| Weight/packaging unit | 1.08 kg |
| Copper weight (kg per piece) | 0.3 |
| Customs tariff number | 85369010 |
| EAN | 4028177140721 |
| ETIM 7.0 | EC001531 |
| ECLASS 8.0 | 27370304 |
Why Proax for Rittal 9612000?
Proax is an authorized distributor of Rittal 9612000 and one of Rittal's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
