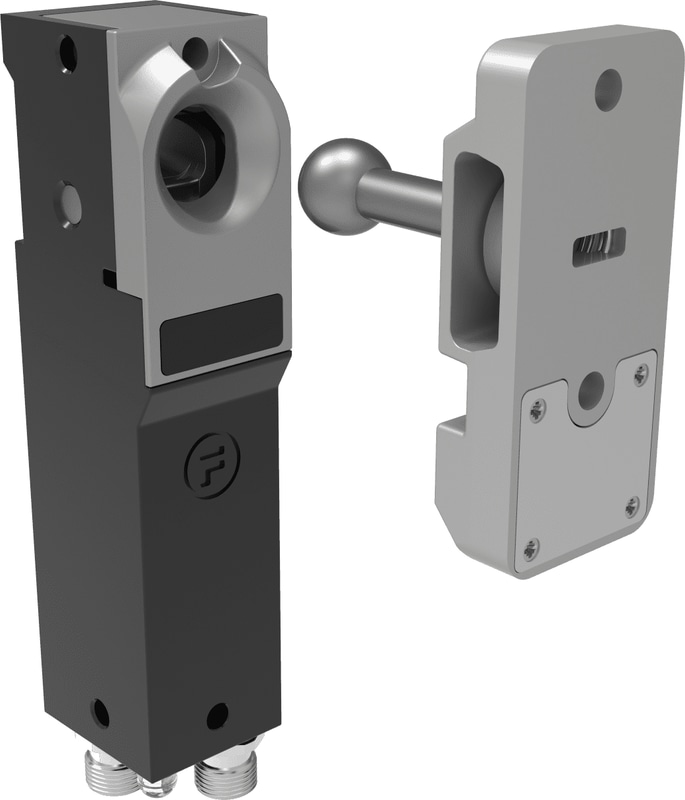

ATM-110A3-A
Official DistributorSKU
FORATM110A3A
Weight
1 kg
Series ATOM Compact Interlock
Compact interlock with RFID coded actuator. Locking for the protection of process (power-to-unlock) for situations where the solenoid performs a process control function rather than a safety function, auxiliary release, LED indicator, and 1 x 8 pin M12 connector.
Documents
ATOM Compact Interlock
with RFID Coding
A compact interlock with a small mounting footprint and high level coded RFID actuator. Suitable for use up to Ple, ATOM offers versatile mounting, easy installation, and reliable performance in various applications.
- Compact mounting footprint
- RFID coded actuator
- Open design
- Suitable for use up to PLe
Technical Specifications
| Ingress Protection | IP65 and IP67 |
| Environment Type | Indoor |
| Operational Pollution Degree (IEC 664) | 2 |
| Ambient Temperature | -20˚C * to +55˚C (-4˚F to +131˚F) |
| Maximum Relative Humidity | 50% at 70˚C |
| Maximum altitude | 2000m |
| Vibration | Tested in accordance with GS-ET-19 and BS 60947-5-2 |
| Operating Voltage, Ue | 24V DC (+/- 10%) |
| Rated Insulation Voltage, Ui | 60V |
| Rated Impulse Withstand Voltage, Uimp | 500V |
| Voltage Drop, Ud | <3.5V |
| Rated Operating Currents | 400mA |
| Minimum Operational Current | 100mA |
| Off-State Current | <0.5mA |
| Rated Conditional Short-circuit Current | 100 A |
| Overvoltage category | Type 2 |
| Electromagnetic Compatibility (EMC) | Conforms to BS 60947-5-3 |
| To Meet UL Requirements | The device must be connected to a Limited Voltage/Current Circuit A 4A fuse must be fitted to the device power supply |
| Coding Type (as per BS EN ISO 14119) | High |
| Safety Response Time | <200ms |
| Safety Input Low to Safety Output Low | <25ms |
| Gate Open to Safety Output Low (SOG) | <200ms |
| Unit unlocked to Safety Output Low | <200ms |
| Safety Outputs | 50mA Limit Each |
| Monitor | 200mA Limit |
| Solenoid Drive | 3.5mA Draw |
| Safety Inputs | 3.5mA Draw Each |
| Performance Level (ISO 13849-1:2015) | Up to Ple |
| Category (ISO 13849-1:2015) | Up to Cat.4 |
| SIL (according to IEC 62061) | Up to SIL CL3 |
| Diagnostic Coverage | A maximum DC of 99% can be achieved with suitable monitoring. |
| PFH | 4.16x10-9 |
| Device Type (according to ISO 14119) | Type 2 | Type 4 with Lock |
| Demand mode (according to 62061) | High |
| Applicable Standards | ISO 14119, ISO 13849, IEC 61508, 60947-5-2, BS 62061 |
Why Proax for Fortress Safety ATM-110A3-A?
Proax is the authorized distributor of Fortress Safety ATM-110A3-A. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | ATM110A3A |
| Pack Size | 1 |
