By Rittal
SKU
Weight
0.6 kg

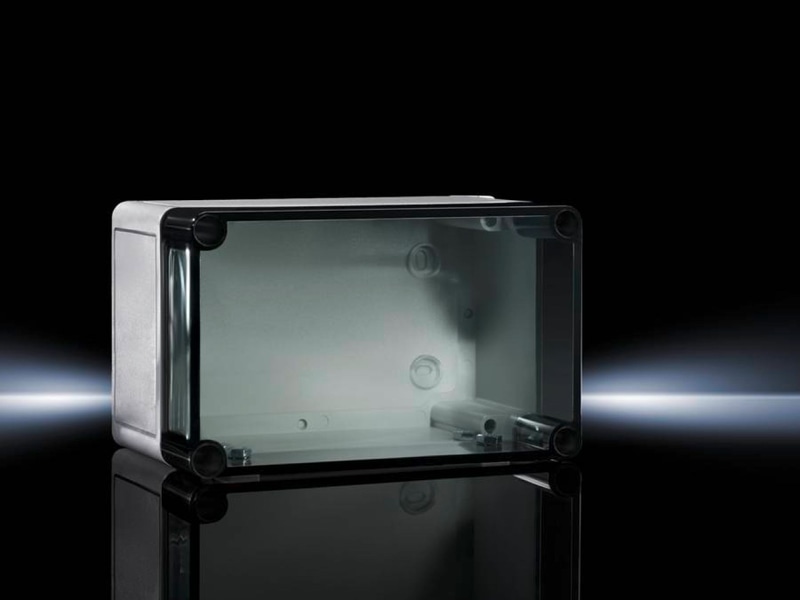

PK Polycarbonate enclosure, WHD: 182x180x90 mm, fibreglass-reinforced polycarbonate, without knockouts, with transparent cover
Supply includes
Housing with cover
Cover screws
Insulating bungs for wall mounting screws
PK Polycarbonate Housings without knockouts
Wall-mounted enclosure of fiberglass-reinforced polycarbonate. Protection category IP 66. Covers feature quick-release fasteners for speedy maintenance. Self-extinguishing material for safety.
Technical Specifications
Dimensions
Width | 182 mm |
Height | 180 mm |
Depth | 90 mm |
Material
Housing | Fiber-glass reinforced polycarbonate |
Cover transparent | Polycarbonate, all-round foamed-in PU seal |
Cover screws | Polyamide |
Insulating bungs | Polythene |
Applications | Ambient temperature range: -35 °C...+80 °C |
Color | RAL 7035 |
Protection category NEMA | NEMA 4X |
Protection category IP to EN 60 529 | IP 66 |
IK code | IK08 |
Design cover | transparent |
Operating temperature range | -35 °C...80 °C |
Base material | Polycarbonate |
Weight/packaging unit | 0.6 kg |
Customs tariff number | 94037000 |
EAN | 4028177139633 |
ETIM 7.0 | EC000261 |
ECLASS 8.0 | 27180101 |
Why Proax for Rittal 9517100?
Proax is an authorized distributor of Rittal 9517100 and one of Rittal's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
Pack Size | 1 |
