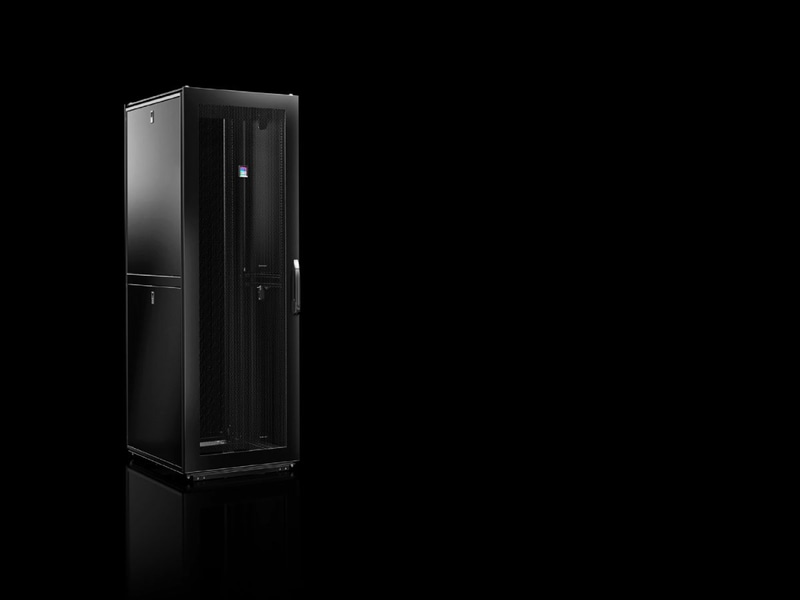

9982206
Official DistributorBy Rittal
Ships complete with perforated single front door and split rear doors keyed alike, leveling feet, casters, roof with brush baffle cable access channels, vertical cable walls with dual PDU mountings.
Supply includes
Perforated single steel door at the front (surface area approx. 85% perforated) 130° quick release internal hinges
Perforated steel door at the rear vertically divided (surface area approx. 85% perforated) 130° quick release internal hinges
Enclosure frame TS 8 with doors and roof plate
Front and rear comfort handles with push button keyed door lock
Installed caster kits
Leveling Feet
Baying Brackets (4 X 24" and 4 X 600mm)
M6 cage nuts (Package of 50)
M6 mounting screws (Package of 50)
Two moveable cable management walls with dual PDU mounting and cable manager cutouts
Two sets of split (horizontal) side panel including matching key set for door locks
Color
| Interior installation | RAL 9005 |
| Enclosure frame and panels | RAL 9005 |
Dimensions
| Width | 600 mm |
| Height | 2,012 mm |
| Depth | 1,200 mm |
Surface finish
| Enclosure frame | Dipcoat-primed |
| Interior installation | Dipcoat-primed |
| Doors and roof | Dipcoat-primed, powder coated |
| Model no. | TS IT PRO 42U0600W1200D BLACK W SIDES |
| Material | Carbon steel |
| Basic color | RAL 9005 |
| Installation height for components | 42 U |
| Note | The door-opening angle may vary depending on site requirements or applications with side panels |
| Distance between levels as delivered | 745 mm |
| Design of 19" mounting level(s) | Profile rails, 482.6 mm (19") |
| Design doors | Perforated front and rear |
| Weight/packaging unit | 130.61 kg |
| UPC-Code | 92690 |
Why Proax for Rittal 9982206?
Proax is an authorized distributor of Rittal 9982206 and one of Rittal's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
| Pack Size | 1 |
