9350075
Official DistributorBy Rittal
SKU
RIT9350075
Weight
0.411 kg
Series Busbar Connectors

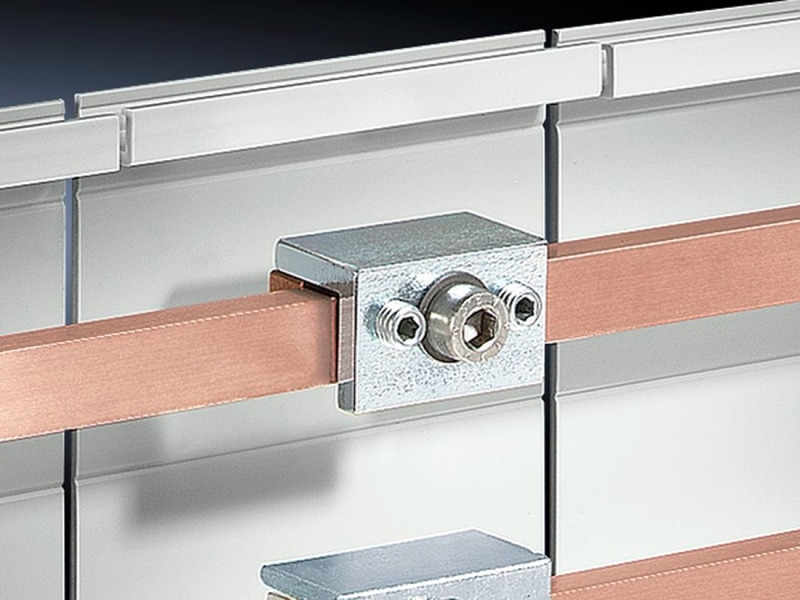

SV Busbar connector, for E-Cu 12x5-15x10 mm, single connection
Busbar Connectors
For connecting busbars, no drilling required.
Technical Specifications
Material
| Top piece | St 37, nickel-plated |
| Back plate | E-Cu, nickel-plated |
| Connection Type | Single connection |
| Suitable for busbars | 12 x 5 - 15 x 10 mm |
| Packaging unit | 3 pc(s). |
| Weight/packaging unit | 0.411 kg |
| Copper weight (kg per piece) | 0.05 |
| Customs tariff number | 85369010 |
| EAN | 4028177504844 |
| ETIM 7.0 | EC000713 |
| ECLASS 8.0 | 27400606 |
