9345100
Official DistributorBy Rittal
SKU
RIT9345100
Weight
2.62 kg
Series Fuse Holders 61 A to 400 A

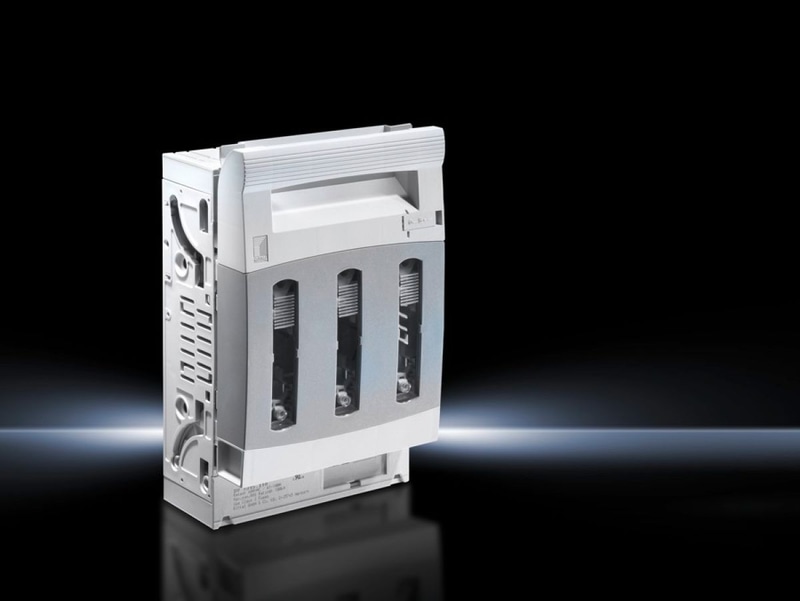

SV Fuse holder, Class J, 61-100 A, 600 V, 3-pole, (60 mm)
Fuse Holders 61 A to 400 A
3-pole, for busbar systems with 60 mm bar center distance.
Technical Specifications
Color
| Chassis | RAL 7035 |
| Cover | RAL 7035/7001 |
Dimensions
| Width | 184 mm |
| Height | 288 mm |
Material
| Contact tracks | Electrolytic copper, silver-plated |
Suitable for busbars
| with cross-section height | 5, 10 mm |
Suitable for fuses
| Diameter | 29 mm |
| Length | 118 mm |
| Connection for round conductor cross-sections | AWG 2 – MCM 300 |
| For bar systems with center-to-center spacing | 60 mm |
| Cable outlet | Top/bottom |
| Type of connection (electrical) | Box terminal |
| For fuse type (class) | J |
| Rated operating current max. | 100 A |
| Rated operating current (min.) | 61 A |
| Fuse standard | UL 248-8 |
| Note | UL (listed accessory) is met through use of the fuse holder on RiLine busbar systems |
| Standards | UL 508 |
| Rated operating voltage | 600 V, 3~ |
| Number of Poles | 3-pole |
| Weight/packaging unit | 2.62 kg |
| Copper weight (kg per piece) | 0.837 |
| Customs tariff number | 85366990 |
| EAN | 4028177615656 |
| ETIM 7.0 | EC001900 |
| ECLASS 8.0 | 27400613 |
Why Proax for Rittal 9345100?
Proax is an authorized distributor of Rittal 9345100 and one of Rittal's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
