9340950
Official DistributorBy Rittal
SKU
RIT9340950
Weight
1.161 kg

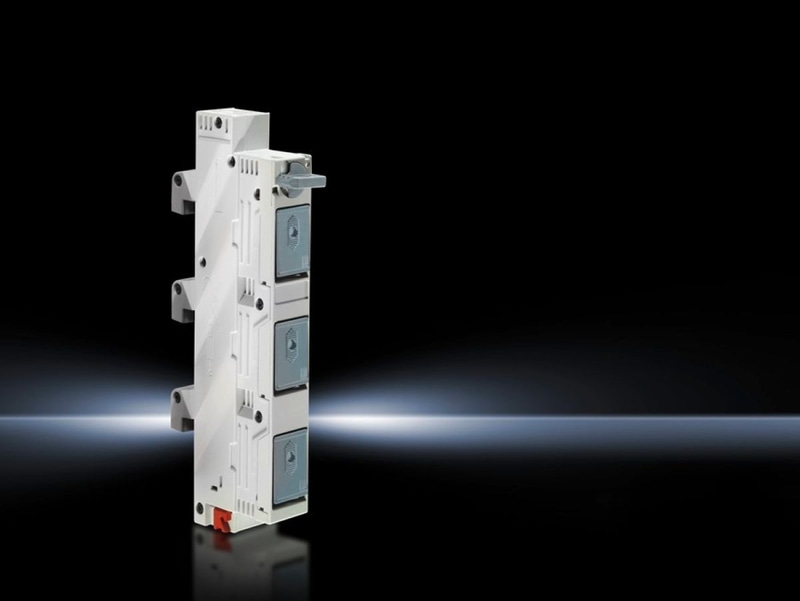

SV Bus-mounting fuse base, D-Switch, 63 A, 400 V, 3-pole, round conductor connection 1,5-25 mm²
Supply includes
Incl. reducing retaining springs for D 01 and 10 x 38 mm fuses
Technical Specifications
Color
| Chassis | RAL 7035 |
| Fuse holder | RAL 7001 |
Dimensions
| Width | 27 mm |
| Height | 226 mm |
Suitable for busbars
| Height | 5, 10 mm |
| Material | Polyamide Fire protection corresponding to UL 94-V0 |
| Note | For the use of fuse inserts to DIN EN 60 269-3 (DIN VDE 0636-3) |
| For bar systems with center-to-center spacing | 60 mm |
| Type of connection (electrical) | Box terminal |
| Fuse inserts | D 01 (with retaining spring) |
| Fuse inserts footnote | When using D 01 and 10 x 38 mm fuses, reducing retaining springs must be used. Optional use of D 01 fuses with adapter sleeve for D 02 base/plinth possible. |
| Rated operating current max. | 63 A |
| Test specification | IEC 60 947-3 |
| Connection for round conductor cross-sections | 1.5 ‐ 25 mm² |
| Voltage range for indicator lights | 100 ‐ 400 V |
| Rated operating voltage | 400 V, 3~ |
| Number of Poles | 3-pole |
| Packaging unit | 3 pc(s). |
| Weight/packaging unit | 1.161 kg |
| Copper weight (kg per piece) | 0.066 |
| Customs tariff number | 85369095 |
| EAN | 4028177603400 |
| ETIM 7.0 | EC001046 |
| ECLASS 8.0 | 27371402 |
Why Proax for Rittal 9340950?
Proax is an authorized distributor of Rittal 9340950 and one of Rittal's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
