9340710
Official DistributorBy Rittal
SKU
RIT9340710
Weight
0.38 kg
This product is Not Cancellable/Not Returnable

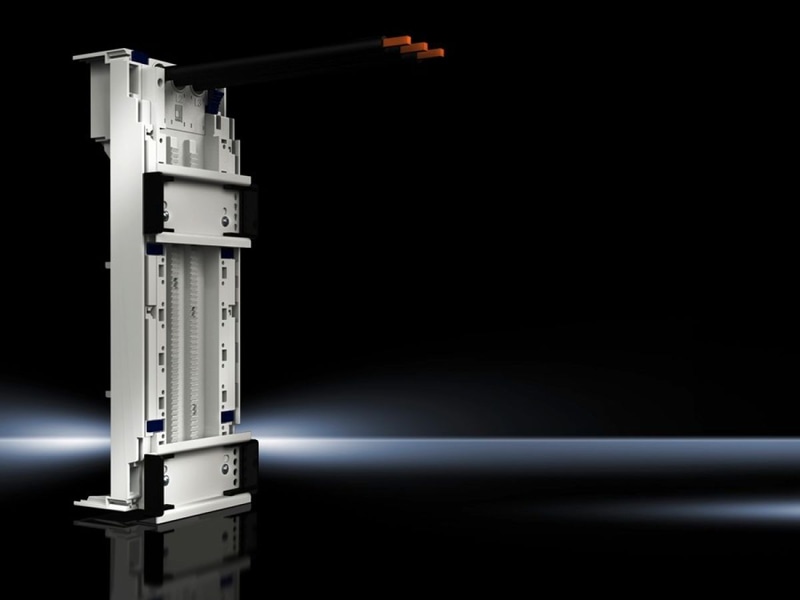

SV OM adaptor, 40 A, 690 V, 3-pole, connection cable AWG 8, WH: 75x208 mm, 2 insert strips, 2 metal support rails
Technical Specifications
Dimensions
| Width | 75 mm |
| Height | 208 mm |
Suitable for busbars
| with cross-section height | 5, 10 mm |
| Material | Polyamide Fire protection corresponding to UL 94-V0 |
| Color | Chassis: RAL 7035 |
| Connection cables (AWG) | AWG 8 |
| Rated current max. | 40 A |
| Rated operating voltage | 690 V, 3~ |
| For bar systems with center-to-center spacing | 60 mm |
| Length of connection cable | 130 mm |
| Support rail type | Metal |
| Note | The technical data may vary for UL applications. |
| Number of Poles | 3-pole |
| Support rails Qty/height | 2 / 7.5 mm |
| Weight/packaging unit | 0.38 kg |
| Copper weight (kg per piece) | 0.088 |
| Customs tariff number | 85369095 |
| EAN | 4028177531116 |
| ETIM 7.0 | EC001531 |
| ECLASS 8.0 | 27370304 |
